The PIE 830 / 830PM multifunction process calibrator sources and measures mA, mV, V, ohms, frequency to 20 KHz, 14 TCs and 9 RTDs. It can detect hidden loop problems and can be used as a universal isolated transmitter for temperature, frequency, millivolt or pressure.

The patented Loop Diagnostic technology detects ground faults and current leakage. Loop current, loop loads, and power supply voltage are simultaneously displayed in order to check all loop parameters at once. It automatically detects 2, 3, or 4 wire RTDs.

It sources and reads thermocouple types J, K, T, E, R, S, B, N, G, C, D, L (J DIN), U (T DIN) and P(Platinel II). RTD types include Pt100 Ohm (3850, 3902, 3916, 3926) and 1000 Ohm (3850) copper 10 & 50 Ohm, Nickel 110 and 120Ω.

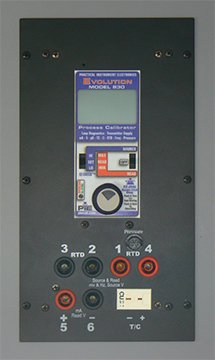

The calibrator can simulate 2 wire transmitters, simulate pH probes into transmitters & analyzers, swap out faulty transmitters to diagnose control issues, and troubleshoot wiring problems without a multimeter. The PIE 830PM panel mount version includes aluminum mounting plate, screws, and AC adapter.
