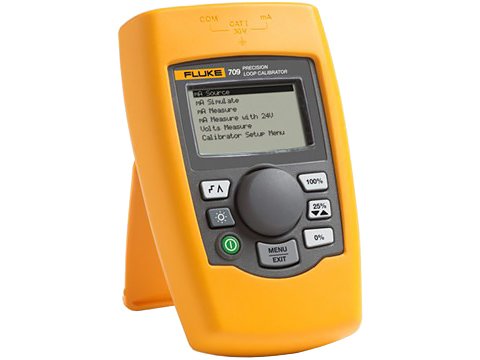

The Fluke 709 and 709H are precision loop calibrators offering best-in-class 0.01% reading accuracy, designed to save time and produce high-quality results. Built around a user-friendly interface with dedicated buttons and a Quick-Set rotary encoder knob, these calibrators dramatically reduce the time required to measure voltage, source current, or power a loop .

Both models perform basic functions including mA source, mA simulate, mA read, mA read/loop power, and volts read, with ranges of 0-24 mA (1 μA resolution) and 0-30 V DC (1 mV resolution). The large backlit graphics display with contrast adjust provides simultaneous mA and % readout, and is easy to read even in dark, cramped work areas .

The Fluke 709H adds HART communications, supporting a select set of HART universal and common practice commands. In communicator mode, users can read basic device information, perform diagnostic tests, and perform output trim on most HART-enabled transmitters. The 709H can store up to 20 HART device configurations and data log up to 9800 records or 99 sessions with selectable 1-60 second intervals .

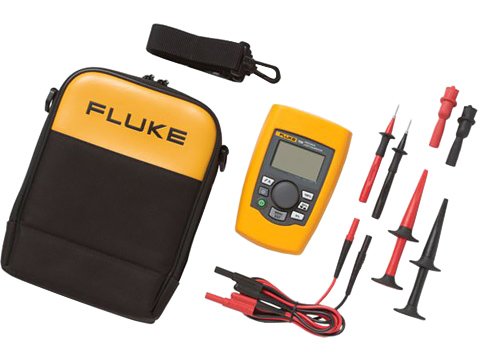

Both models feature a 24V internal loop power supply, pushbutton step and ramp keys for fast linearity checks, and protection up to 240V AC. The rugged, compact design is contoured to fit a technician's hand, and the removable battery compartment allows quick changes of the six AAA batteries, which provide approximately 40 hours of typical operation. The 709H includes additional accessories including HART cable and SureGrip hook clips .
