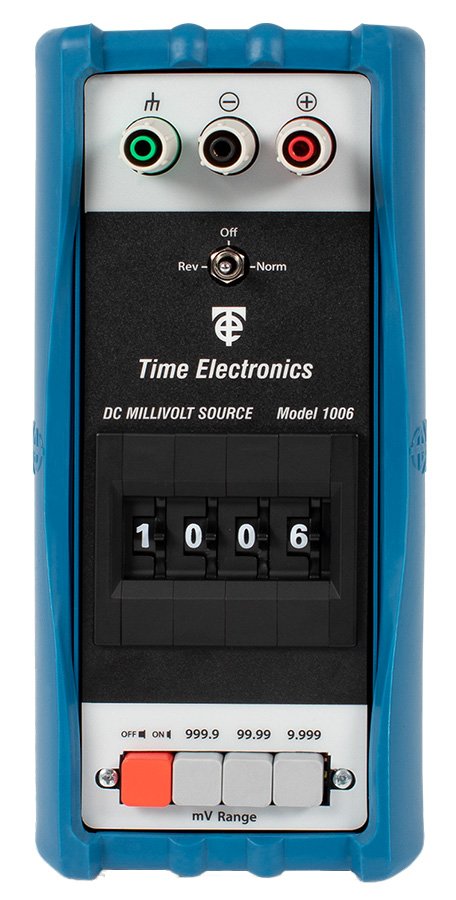

The Time Electronics 1006 is an accurate, low-cost DC millivolt source designed for voltage injection applications. Offering three output ranges with adjustable values from 1μV to 1V and a basic 0.02% accuracy, it provides a simple and reliable solution for calibration and testing .

The 1006 features three output ranges up to 1V, with the lowest range providing 1μV resolution. It delivers 20mA output current capability and includes short circuit and overload protection for reliable operation in various test scenarios .

Signal injection is made simple with the operator needing only to switch on, check the battery condition, select the range, and set the required voltage using the thumbwheel switches. The unit is portable with rechargeable batteries and includes a carrying case for field use. Battery life is approximately 100 hours typical with 6 AA batteries .

The 1006 is suitable for calibrating chart recorders, data loggers, thermocouple simulators, and other millivolt-input devices. Safety terminals are compatible with 4mm shrouded plugs, standard plugs, bare wires, and spade terminals .
