Product Specifications
Manufacturer:Druck
Product Type:Pressure Loop Calibrator
Part Number:DPI802
Pressure Ranges:10 inH2O to 10,000 psi (25 mbar to 700 bar)
Configuration:Single or dual range
Pressure Accuracy:IDOS sensors 0.05% FS all-inclusive (0.01% precision available)
mA Measurement:0-55mA
Loop Power:24V DC
Switch Test:Automatic capture of open/closed trip values
HART Support:Built-in 250Ω resistor (switchable)
Display:Large backlit, menu-driven
Battery Life:>50 hours measure, <10 hours 24V source
Power:3 x AA batteries
Dimensions:7 5/16 x 3 19/64 x 2 inches (18 x 8.5 x 5 cm)
Features:Robust, weatherproof, one-handed operation, secure grip, impact resistant
Documents: Product Manual, Product Specs
Product Description
The Druck DPI 802 pressure loop calibrator provides simultaneous pressure and mA measurement for transmitter and loop maintenance. It is designed for technicians performing field work such as calibration and repair service, equipment installation and maintenance, as well as technicians in a variety of manufacturing environments.
When used in conjunction with a pressure source from the Druck range of hand pumps, it provides a simple and cost-effective calibrator for gauges, indicators, and recorders. Pressure ranges cover from 10 inH2O to 10,000 psi with single or dual range configuration. IDOS sensors provide 0.05% FS all-inclusive accuracy with 0.01% precision available.
The 24V loop power supply energizes transmitters and control loops. Automatic switch test captures open/closed trip values, providing fast and highly accurate safety system checks. A HART resistor can be switched into the loop when required, avoiding the inconvenience of carrying a 250Ω resistor.
The large backlit display and menu-driven interface ensure easy operation. The calibrator is robust, weatherproof, and designed for one-handed operation with a secure grip and impact-resistant elastomer protection.

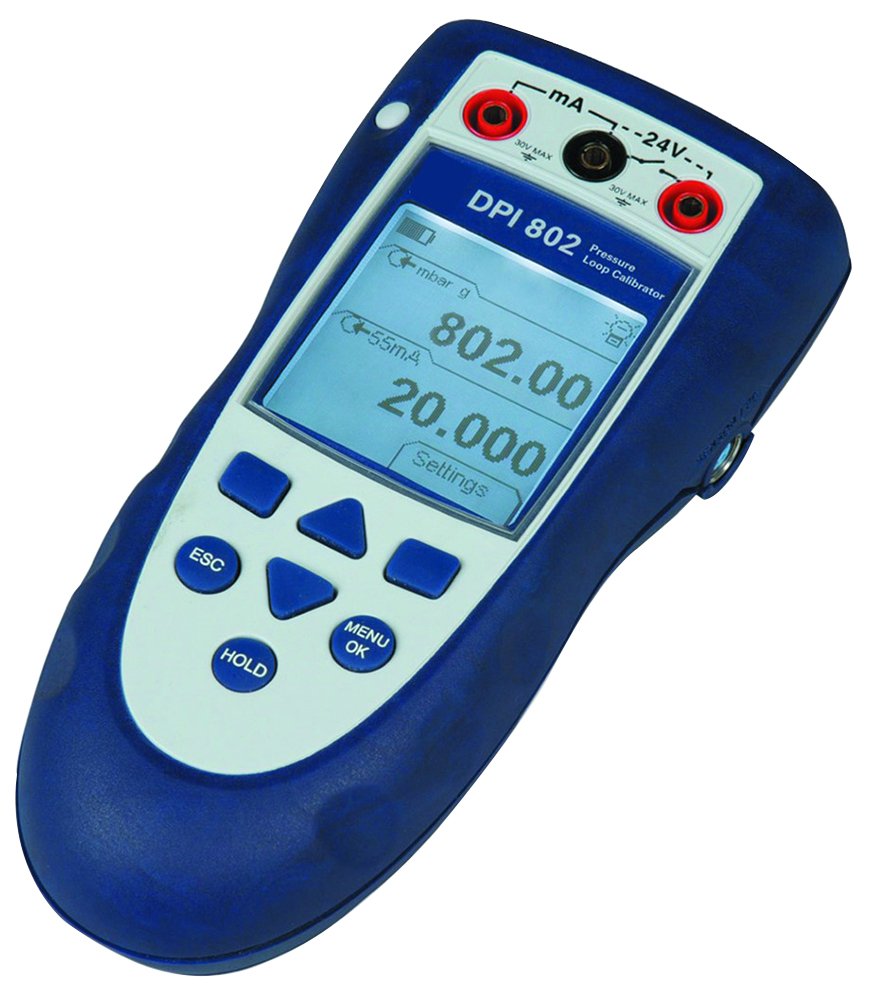

Pressure Loop Calibrator - 10,000 psi, Dual Range | Druck DPI 802
