Product Specifications

Product Description

Granzow H Series direct-lift solenoid valves are 2-way, normally-closed valves with pilot control, and will operate with zero psig. They are designed for direct pipe mounting. The valves are available with interchangeable coils for both AC and DC voltages. Solenoid valves in this series are used in such applications as water treatment, pumps, spraying, and automation equipment with medium such as air, inert gas, water, and synthetic oils (FKM seals).

Granzow
Compare

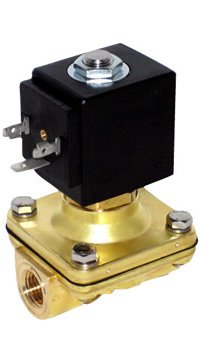

Direct-Lift Solenoid Valve - Zero PSIG Start | Granzow H Series

Zero psi start 1-1/2in
MPN/Series: H Series

Product Specifications

Manufacturer
Granzow
Series
H Series
Product Type
Direct-Lift Solenoid Valve
Body Material
Brass
Pipe Size
1/4 to 1-1/2 inches
Pressure Range
0-232 psi
Cv Flow Factor
1.40 to 19.32
Seal Materials
NBR/PA or FKM
Documents
Product Specs (2 Files)
