Product Specifications

Product Description

The InTemp CX402-TXXX series temperature data loggers monitor temperatures in refrigerators and freezers for clinics participating in the CDC Vaccines for Children program as well as hospitals, clinics, and WHO sites. The loggers communicate wirelessly via Bluetooth Low Energy to mobile devices.

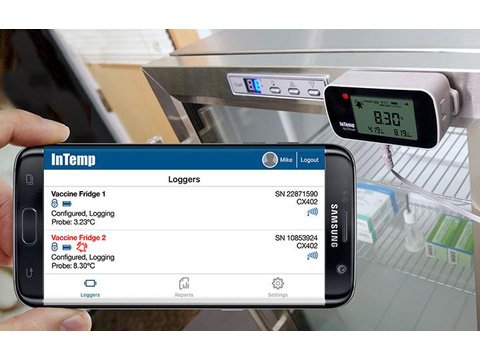

Using the InTemp app, you can easily view data, check logger status, set alarms, and create and share secure PDF reports for streamlined reporting and regulatory compliance.

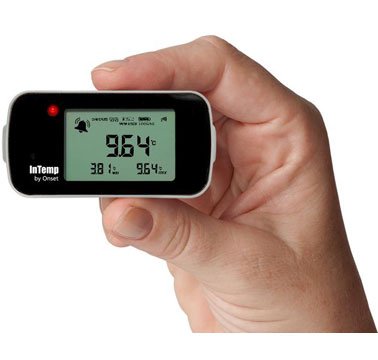

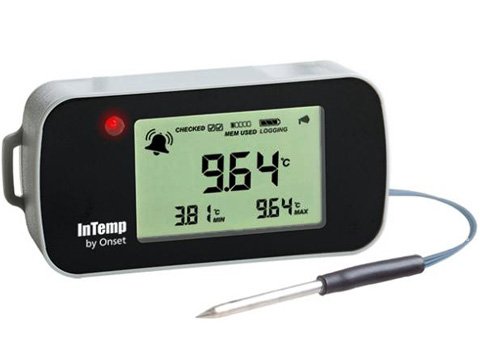

All loggers feature a built-in LCD display to view current and daily min and max temperatures, advanced audible and visual alarm capabilities for notification of temperature excursions, an internal sensor for ambient temperature monitoring, and a 3-year NIST Certification of Calibration for the probe. External temperature probe is available with a 2- or 4-meter flat ribbon cable.

With the optional CX Gateway, you can get remote notifications of temperature excursions and automatically download data from loggers within range of the device.

Temperature range is -40 to 212°F (-40 to 100°C) with accuracy of ±0.5°C between 5 and 176°F. No PC or cable needed for setup or download. Powered by 2 AAA batteries with 128 KB memory (84,650 measurements). IP54 and CE rated.

Related Products

  1. InTemp Data Loggers by Onset CX402-TXXX — CDC VFC compliant, glycol bottle, gateway option
  2. InTemp Data Loggers by Onset CX405 — Dry ice shipping monitor with external probe
InTemp Data Loggers by Onset
Compare

Bluetooth Temperature Logger - CDC VFC Compliant | InTemp CX402-TXXX

3-year NIST certification, external probe, gateway option
MPN/Series: CX402-TXXX

Product Specifications

Manufacturer
InTemp Data Loggers by Onset
Product Number
CX402-TXXX
Type
Bluetooth Temperature Data Logger
Temperature Range
-40°C to +100°C (-40°F to +212°F)
Accuracy
±0.5°C (5°C to 80°C), ±0.7°C (80°C to 100°C), ±1.0°C (-40°C to 5°C)
Memory
128 KB (84,650 measurements)
Wireless
Bluetooth Low Energy, approx. 100ft (30.5m) line-of-sight range
Download Time
Approximately 60 seconds full memory
Power
2 AAA batteries
Display
Built-in LCD
Alarms
Audible and visual
External Probe
Available with 2- or 4-meter flat ribbon cable
Certifications
NIST certificate of calibration included (3-year), IP54, CE
Gateway Option
CX Gateway for remote notifications
Compliance
CDC Vaccines for Children program
