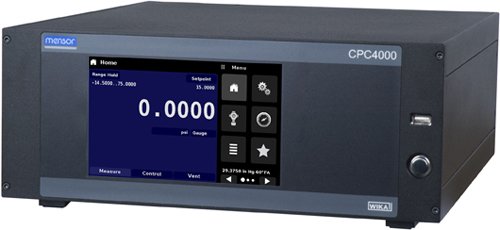

The Mensor CPC4000 pressure controller is a single-channel, multi-range automatic pressure controller designed to test and calibrate a variety of pressure devices such as pressure gauges, pressure switches, sensors, transducers and transmitters in either absolute or gauge pressure modes. Select from four available pressure regulator options to set the overall working pressure capability of the unit, then order pressure sensors separately that are within that range to install in the controller chassis. The unit can have up to two sensors installed internally at a time.

The CPC4000 offers a measurement accuracy of up to 0.02% IS-50, and controls pressure with a high stability, it is particularly suited as a production tool for transmitter manufacturing, a calibration and maintenance tool for pressure measuring devices or a factory/working standard for the calibration of all types of pressure measuring devices. The contamination prevention accessories like the coalescing filter and block and bleed valve make the CPC4000 an ideal solution in oil and gas plants.

The touchscreen, along with an intuitive user interface, provide maximum ease-of-use. Multiple languages are available for on-screen text and number/date formats; change the language by simply touching one of the "national flag" icons available in the setup screen.

Applications: Oil & gas industry, industry (laboratory, workshop and production), transmitter and pressure gauge manufacturers, calibration service companies and service industry.
