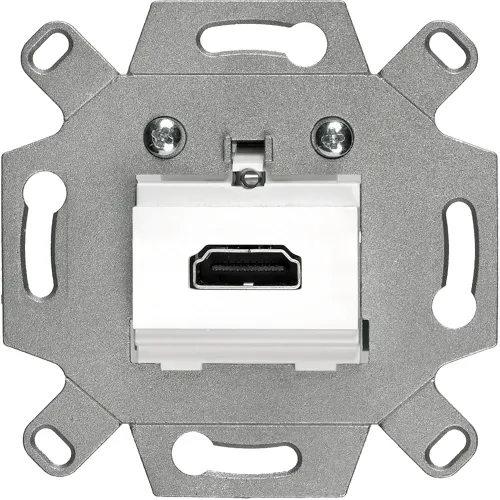

The DELTA m-system HDMI connection socket brings a permanent, wall-mounted HDMI interface to flush-mounted installations. The 19-pin Type A female connector is factory pre-wired to 20-core screw terminals — the installer connects the in-wall HDMI cable conductors to the numbered terminals and snaps the insert into a standard DELTA m-system frame. No soldering, no HDMI connector crimping.

Pre-assembled (-0) or field-terminated (-1) — which do I need?

The -0 variant (this product) arrives with the HDMI socket already wired to the screw terminal block — you connect the in-wall cable to clearly marked terminals. The -1 variant (5TG2020-1, gray) ships with an empty PCB and an unterminated HDMI connector — you solder or crimp the HDMI wires yourself. Choose -0 for standard installations where speed and reliability matter. Choose -1 only if you need to pass an HDMI cable through conduit too narrow for a pre-assembled connector.

Will this pass 4K or HDMI 2.0 signals?

Siemens rates this socket for 1920×1080 (Full HD). While the internal wiring may physically pass higher-bandwidth signals, 4K/HDMI 2.0 is not specified or guaranteed. For 4K installations, test a sample before committing to the full installation, or consider active HDMI extenders over Cat6. The socket is 3D-ready within its rated resolution.

Does the white cover frame come with the socket?

No — the 5TG2020-0 is the functional insert only. The matching DELTA m-system cover plate (typically a 55×55mm format blank with a rectangular HDMI cutout) must be ordered separately. The insert fits all DELTA m-system modular frames and compatible DELTA line/miro/profil cover plates.
