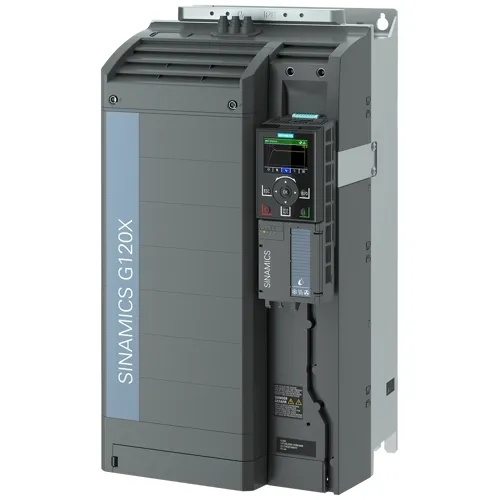

The 6SL3230-3YE40-0AF0 is the F-suffix 55 kW G120X in the FSE frame — standard coating with integrated C2 EMC filter and no operator panel. Electrically identical to the 0AP0 at 149 A LO — the F and P designations distinguish the ordering channel, not the drive hardware. For systems integrators and panel builders who procure via the F-suffix catalog path, this is the standard 55 kW indoor variant with built-in EMC compliance.

The integrated C2 EMC filter handles conducted emissions at the drive terminals, keeping cabinet design simple — no external filter to source, mount, and cable. Standard coating suits controlled indoor environments (electrical rooms, MCC buildings). Network-based commissioning via PROFINET eliminates the cost of a permanently mounted operator panel while retaining full parameter access and diagnostics through TIA Portal. When local operator access is required, the 0AB0 variant adds the IOP-2 panel; for harsh environments, the 1-series coating variants provide the conformal coating. FSE frame: 275 × 551 × 239 mm.
