Product Specifications
- Brand
- Siemens
- Model Number
- 6SL3230-3YC28-1UP0
- Type
- SINAMICS G120X 15 kW frequency converter
- Series
- SINAMICS G120X
- Rated Power
- 15 kW
- Rated Current
- 73 A
- Input Voltage
- 200-240 V 3-phase
- Communication
- PROFIBUS DP
- Frame Size
- FSD
- Protection Rating
- IP20
- EMC Filter
- Unfiltered
- Mounting
- Cabinet-mount
- DC Terminals
- Yes (for du/dt filter connection)
- Overload
- 110% / 60 s (low overload, pump/fan duty)
Product Description
A 15 kW load on a 200-240 V supply needs a converter that fits the existing bus without a transformer. The 6SL3230-3YC28-1UP0 is a G120X unit that does exactly that and carries PROFIBUS DP onboard for legacy controller panels.
Do you need DC terminals for a du/dt filter?
This variant includes DC terminals for connecting a du/dt filter, which protects motor insulation on long cable runs or with older windings. If you do not need that, the -0UP0 offers the same 15 kW PROFIBUS converter without the terminals.
It outputs 73 A in an FSD frame (200 x 472 x 239 mm), IP20 for cabinet mounting, rated 110% / 60 s for pump and fan duty.
Related Products
Resources & Documentation
Siemens 6SL3230-3YC28-1UP0 | SINAMICS G120X 15 kW PROFIBUS DP drive with DC terminals
Product Specifications
- Brand
- Siemens
- Model Number
- 6SL3230-3YC28-1UP0
- Type
- SINAMICS G120X 15 kW frequency converter
- Series
- SINAMICS G120X
- Rated Power
- 15 kW
- Rated Current
- 73 A
- Input Voltage
- 200-240 V 3-phase
- Communication
- PROFIBUS DP
- Frame Size
- FSD
- Protection Rating
- IP20
- EMC Filter
- Unfiltered
- Mounting
- Cabinet-mount
- DC Terminals
- Yes (for du/dt filter connection)
- Overload
- 110% / 60 s (low overload, pump/fan duty)
Resources & Documentation
Siemens 6SL3520-0XM03-0AA0
3 kW FSB Drive for Motor Selection and Outdoor Mounting
Siemens 6SL3230-3YE22-0AP0
5.5kW G120X FSB, C2 EMC, P

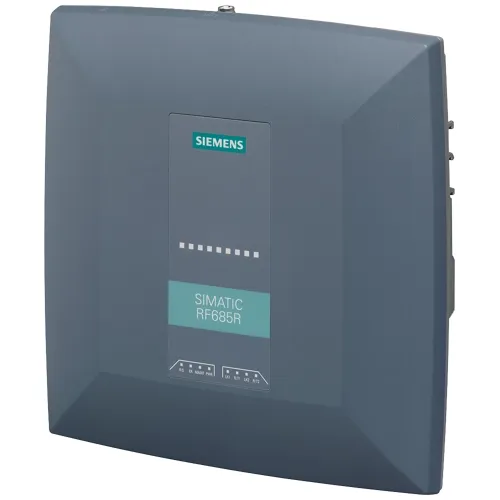

Siemens 6GT2811-6CA10-0AA0
