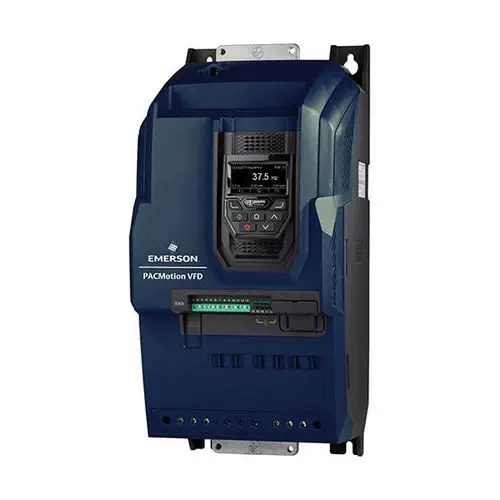

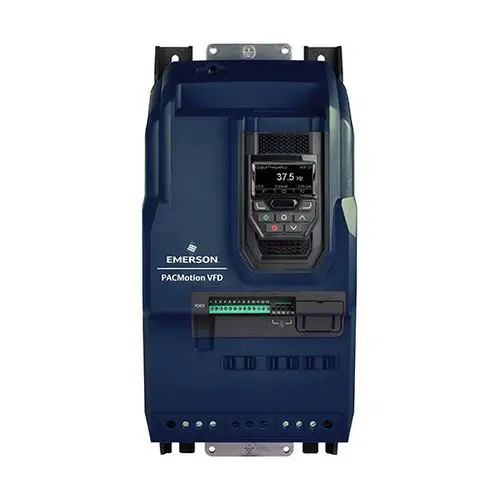

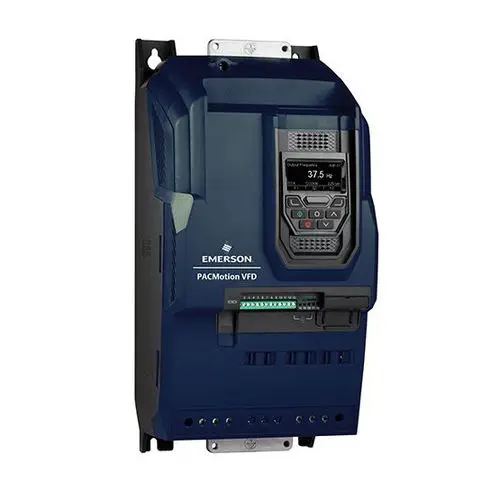

The IC866-0185-2A3-20 is the IP20 cabinet-mount version of the 18.5 kW (25 HP) 240 V three-phase IC866 — 72 A output, Frame 5, open-chassis design for installation inside a motor control panel. This is the base drive, shipping without a factory-installed option card: the built-in RS-485/Modbus RTU interface and I/O terminals handle basic speed control from a PLC analog output or digital preset speeds, while the three modular expansion slots on the control board accept field-installed PROFINET, Modbus TCP, or encoder feedback cards when the application demands more. The -20 suffix means the panel builder pays only for the communication hardware the specific machine actually needs.

IP20 vs. IP55: the enclosure decision at 72 A

The IC866-0185-2A3 exists in two enclosure variants side by side in this batch: IP20 cabinet-mount (this product, 7117) and IP55 machine-mount (7118). Both share the same 72 A power stage, same Frame 5 physical dimensions, same control electronics. The decision between them is not about electrical performance — it is entirely about where the drive lives. The IP20 drive expects to live in a ventilated steel enclosure that provides environmental protection, a defined airflow path, and a disconnect means. This is the standard configuration for centralized motor control centers, multi-drive line-ups, and OEM machines that already include a control panel for PLC, HMI, and ancillary controls. The IP55 drive expects to live in the open — on a machine frame, a wall bracket, or a pedestal — relying on its own gasketed housing and sealed heatsink for environmental protection. At 72 A, the IP20 version's dependence on cabinet airflow is not trivial: an enclosed panel housing this drive must move at least 150 m³/h of air through the cabinet to keep the interior below 40 °C. The IP55 version's heatsink handles this thermally without cabinet airflow — but at a higher unit cost. For the panel builder, choosing the IP20 version means accepting the responsibility to engineer the cabinet thermal solution. For the end user who simply needs to control a 25 HP 240 V motor and already has a ventilated electrical room, the IP20 version is the straightforward, lower-cost answer.
