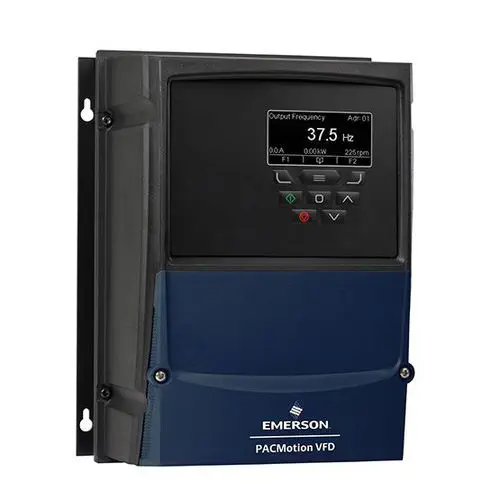

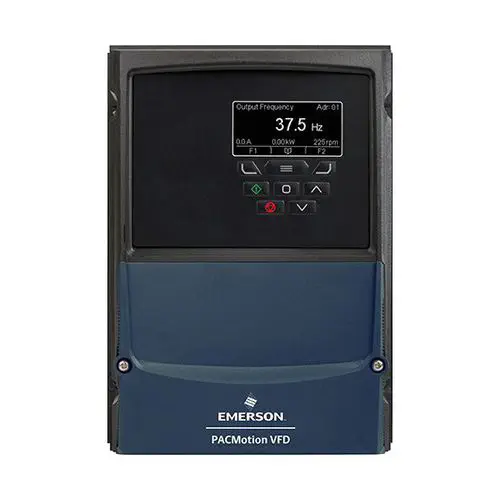

The IC866-0008-4A3-60 is the entry-level drive in the 480 V class of Emerson's PACMotion VFD family — 0.75 kW (1 HP) at 2.2 A output in an IP66/NEMA 4X sealed enclosure. It is the smallest drive available in the 480 V voltage class, and the fact that it carries an IP66 rating at this power level is noteworthy: fractional-horsepower drives are typically IP20 commodity products. The IC866-0008-4A3-60 brings the same PROFINET RT, STO, PID, and keypad found on the 90 kW IC866-0900-4A3-50 into a Frame 2 package that can be mounted outdoors without a cabinet.

Where does a 0.75 kW, 480 V, IP66 drive belong?

The combination of small power, high voltage, and weatherproof enclosure targets a specific set of applications: a chemical metering pump at a water treatment plant dosed from a 480 V distribution panel, a cooling tower fan motor on a rooftop where no cabinet exists, a condensate return pump in a steam system exposed to weather, a ventilation fan in an underground parking structure subject to humidity and vehicle wash-down. In all these cases, the drive must survive where it is installed — there is no control room, no MCC building, and no shelter. The IP66 enclosure handles rain, hose-directed cleaning, and airborne dust. The built-in PID controller can regulate pump flow from a flow meter pulse input, fan speed from a temperature sensor, or dosing rate from a 4–20 mA analytical instrument signal. PROFINET RT connects it to the plant SCADA for remote monitoring — the drive's small power class does not exempt it from being part of the plant's networked asset base. For a system integrator building a water treatment skid where every motor is 480 V and every device must be outdoor-rated, this drive provides a consistent control interface at the lowest power tier without breaking the voltage class or the enclosure strategy.
