The RXi2-LP in its compact dual-core form factor measures just 37 mm in height — thin enough to mount directly on a machine frame, inside an operator panel, or behind a display where cabinet space is unavailable. The sealed, fanless aluminum and stainless-steel housing with IP20 protection shrugs off the vibration, dust, and occasional coolant splash of factory-floor mounting locations that would kill a fan-cooled PC within months.

What connectivity does the compact LP provide?

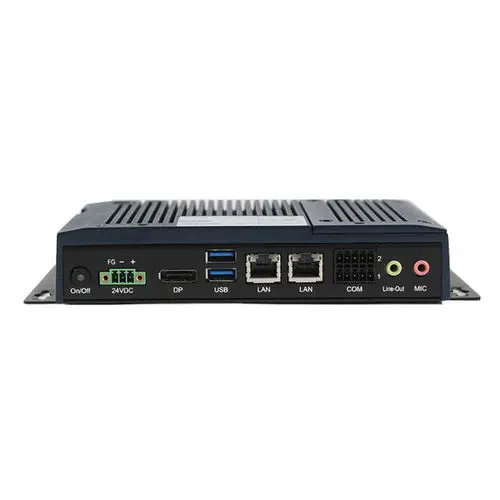

In its dual-core configuration, the compact LP provides 2 Gigabit Ethernet ports — one for the machine network (PROFINET, EtherNet/IP, Modbus TCP) and one for the plant/enterprise uplink — plus 2 USB 3.0 ports, an RS-232 serial port, and an RS-422/485 port for legacy device connectivity. A single DisplayPort++ 1.2 output supports dual independent monitors via daisy-chaining or MST hub, driving local operator displays and remote dashboards simultaneously. Internal expansion includes a Mini PCIe slot and an M.2 E-key slot for WiFi, Bluetooth, or additional storage.
