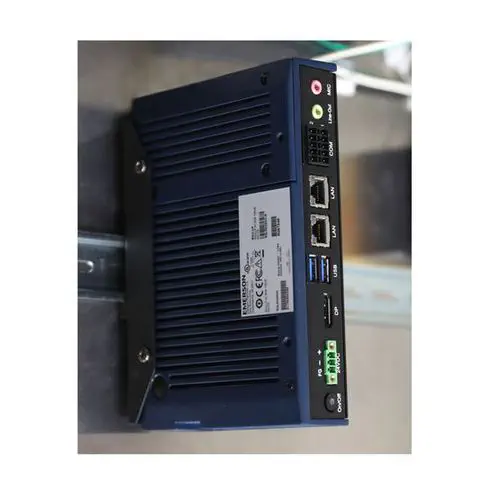

The RXi2-LP is the entry-level platform in Emerson's PACSystems RXi2 industrial PC family, designed for edge computing workloads directly on the machine or production line. Built on AMD G-Series SOC processors with a fanless, sealed aluminum and stainless-steel housing, it operates reliably from -25°C to +65°C without vents or moving parts — eliminating the primary failure point of conventional industrial PCs in dusty, vibratory factory environments.

What are the two performance tiers within the LP series?

The RXi2-LP is available in two configurations: a compact dual-core variant (AMD GX-210HL, 1.0 GHz, 7W TDP) with 2 Gigabit Ethernet ports and 2 USB 3.0 ports in a 37 × 119 × 180.8 mm footprint, and a larger quad-core variant (AMD GX-412GC, 1.2–1.6 GHz, 15W TDP) with 4 Gigabit Ethernet ports and 4 USB ports in a 33.7 × 160 × 298.3 mm enclosure. Both support DisplayPort++ 1.2 for dual independent displays and include RS-232 and RS-422/485 serial ports for legacy industrial device connectivity.

What edge software stack does the RXi2 platform support?

Emerson's PACEdge software platform runs natively on the RXi2-LP, providing OT/IT protocol bridging, OPC UA server functionality via Movicon Connext, local data historian, and analytics capabilities at the machine level. Operating system options include Windows 10 IoT Enterprise LTSC and Ubuntu Linux. The integrated TPM 2.0 security module and Microsoft Secure Boot provide hardware-rooted trust for connected factory deployments. Optional hazardous-location certifications (ATEX Zone 2/22, IECEx, UL Class 1 Div 2) extend deployment to process industry environments.
