Product Specifications
- Brand
- Siemens
- Part Number
- 6SL3230-3YE34-0UF0
- Type
- Frequency Converter
- Series
- SINAMICS G120X
- Power Rating
- 30 kW (LO), 81 A
- Overload
- 110% for 60 s
- Supply
- 3 AC 380–480 V
- EMC
- Unfiltered
- Coating
- Standard
- Frame Size
- FSD (200×472×239 mm)
- Protection
- IP20
Product Description

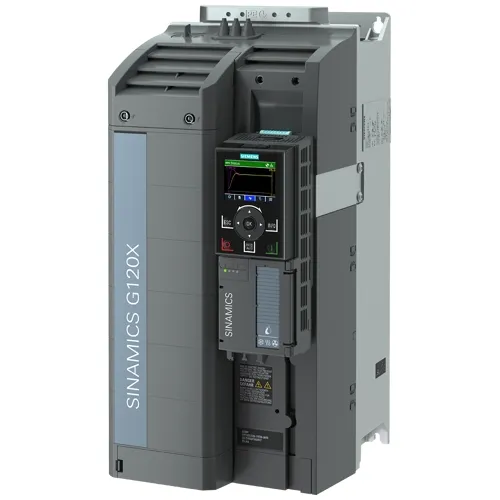

The 6SL3230-3YE34-0UF0 is the F-suffix ordering variant of the 30 kW unfiltered G120X. Electrically and mechanically identical to the 0UP0 — same FSD frame (200×472×239 mm), same 81 A LO rating, same 110%/60 s overload, same standard coating and unfiltered EMC classification. The F suffix is a catalog ordering channel distinction: a different commercial part number for the same physical drive.
Is there any technical difference between 0UF0 and 0UP0?
No. The power stage, I/O configuration, firmware, and physical dimensions are identical. The two part numbers exist to serve different Siemens distribution channels — the end result on the panel backplate is the same drive. If your procurement system recognizes one code but not the other, order the one that routes through your approved channel. The G120X inside the box does not change.
