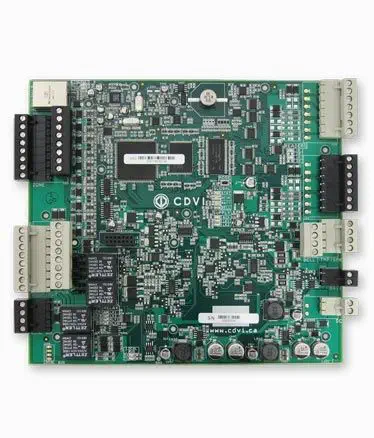

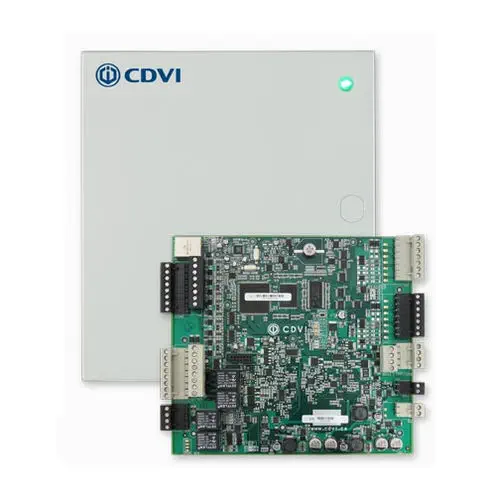

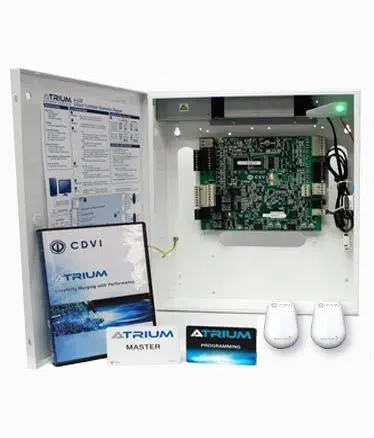

The AC22 is CDVI's IP-based access control controller in the ATRIUM series, designed for small to medium installations that need web-based management without dedicated server software. An embedded web server — accessible from any browser, smartphone, or tablet — handles user enrollment, schedule programming, and event monitoring. Two doors are managed on-board with Wiegand and magnetic stripe reader support; four AX22 2-door expander modules scale the system to 10 doors.

What access management features does the AC22 provide?

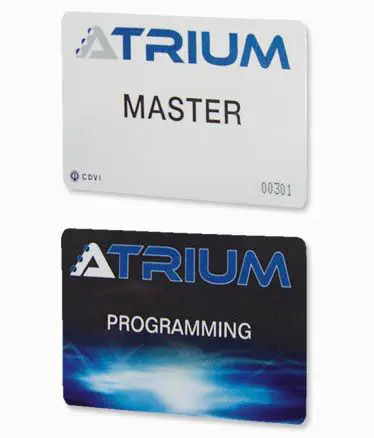

The controller supports up to 1,000 users across 100 access levels and 100 schedules, each with up to 100 time periods. Anti-passback prevents users from tailgating; interlock ensures only one door in a pair opens at a time. Lift/elevator floor control and CCTV/alarm/email integration are built in. Card enrollment is simple — via the on-board MODE button, MASTER/PROGRAMMING cards, or the ATRIUM PC software. Firmware updates complete in under 10 seconds via the web interface.

How does the power and expansion architecture work?

A universal auto-sensing 120–240 VAC power supply delivers 24 VDC at 3.5 A to the controller, lock outputs (750 mA at 12 VDC each), and connected devices. A rechargeable 12 VDC 7 Ah battery provides backup during mains failure, with programmable charging current (250 mA to 1 A). Two Form C lock relays rated 5 A at 28 VDC switch fail-secure or fail-safe locking hardware. The RS-485 4-conductor expansion bus connects AX22 door expanders up to 1,220 meters away. Ten multi-purpose inputs — expandable to 20 via zone doubling — accept door contacts, request-to-exit, and tamper switches. Auto-recovery fuseless technology on DC outputs resets automatically after fault conditions, eliminating fuse replacement.
