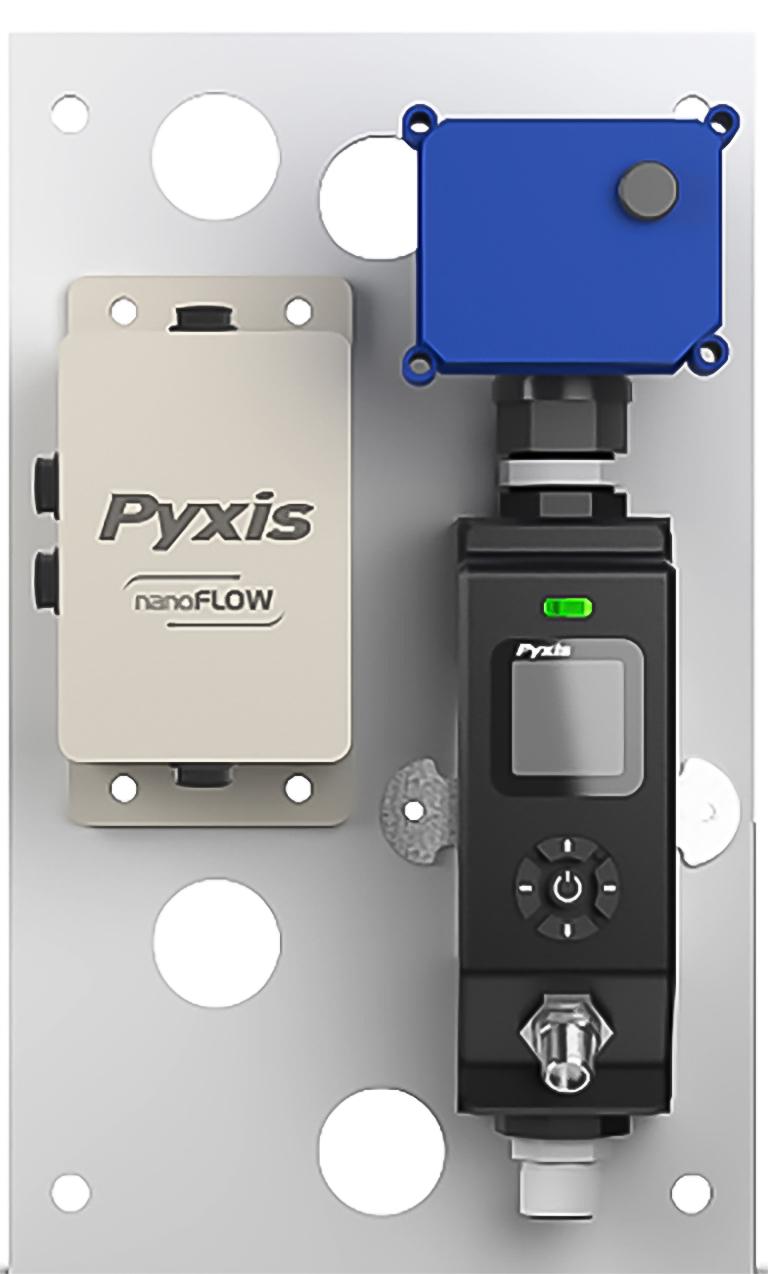

The Pyxis FS-100 NanoFlow Sample Flow Measurement & Regulation Control Module is a stand-alone water flow measurement and control solution. The Nano-Flow is designed for use in critical cooling and process water sample flow applications. This unique platform provides precise flow measurement and regulation. Furthermore, the Nano-Flow module is offered in a micro-panel design and is equipped with the Pyxis FS-100 ultrasonic flowmeter with a display, which directly controls a pre-mounted regulating valve through a user interface.

The new FS-100 operates on the principle of transit time difference with a measurement range of 0-3,000mL/min and resolution of 1mL. In addition, the sensors advanced PCB design offers built-in temperature compensation to eliminate the effect of temperature with instantaneous, accumulated and controlled water flow based on user setpoint within the sensor itself.

The flow control module incorporates an electric box for panel power supply, as well as an internal regulating valve control and FS-100 output flow signal wiring both 4-20mA and RS-485 Modbus for connection to any OEM controller, PLC or DCS. Specifications: fluid temperature 40-120°F, sample inlet pressure 7.25-30psi, rated flow range 0-3000mL/min, resolution 1mL/min, max error ±2% of value, operating temperature 32-122°F.
