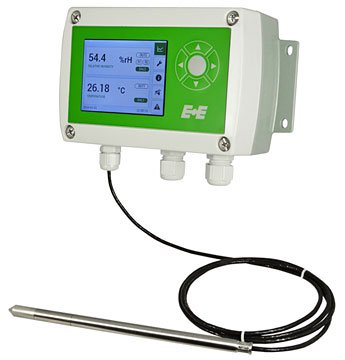

The E+E EE310 humidity and temperature transmitter is optimized for reliable measurement in demanding industrial applications. Using measured RH and temperature, it calculates dew point, frost point, mixing ratio, absolute humidity, wet bulb temperature, water vapor partial pressure, and specific enthalpy.

Measured values are available on two analog outputs and an optional Modbus RTU or Ethernet interface. Outputs are freely configurable, and humidity/temperature adjustment can be performed via the display or with free EE-PCS software via USB. An optional TFT display shows up to four measurements simultaneously with error diagnostics and integrated data logging for 20,000 values, which can be displayed as a graph or downloaded via USB.

The E+E proprietary coating option protects sensor elements against corrosive and electrically conductive pollution, extending sensor lifetime in challenging environments such as salts, offshore, dusty, or oily applications. The EE310 is available in wall, duct, and remote probe versions with measurement ranges up to -40 to 180°C.
