The Pro-face PS6000 Series is a versatile industrial PC platform engineered to meet the growing demands of smart manufacturing, digitization, and IIoT. It combines the rugged reliability of a dedicated HMI with the open, high-performance architecture of a PC. This modular system allows users to build a PC-based solution tailored to their application's specific needs in terms of software, system structure, operational efficiency, and data flow. The PS6000 Series supports UI design and software integration for operator terminals, secure remote connectivity, smart maintenance, and simple field connections to IT systems.

Modular Hardware Architecture

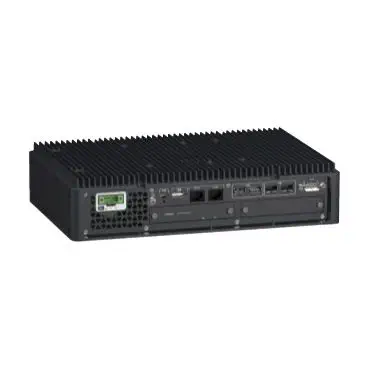

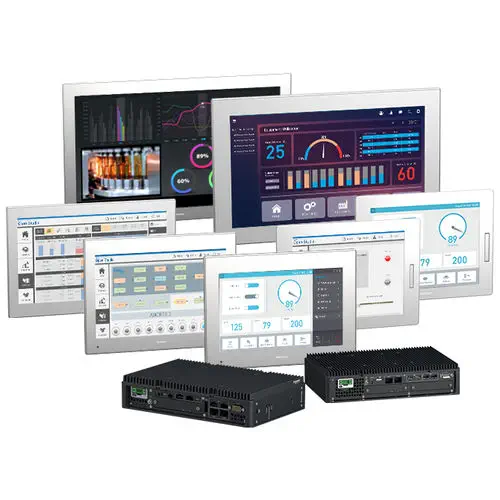

The PS6000 Series features a modular design, separating the computing unit (Box Module) from the display unit. This allows for flexible configuration where different box modules (Advanced, Standard, Basic) can be paired with a variety of display modules to match exact performance and interface requirements. The advanced box unit supports up to two expansion slots (PCI/PCIe) for additional interface cards. The basic box unit offers a cost-effective entry point with an Intel Atom processor.

Processor and Memory Options

• Advanced Box: Intel Core i7 (4-core) or Core i5 (4-core) or Celeron (2-core); up to 32 GB DDR4 memory; M.2 SSD x1 + 2.5" HDD/SSD x2.
• Standard Box: Intel Core i3 (2-core); up to 32 GB DDR4 memory; M.2 SSD x1 + 2.5" HDD/SSD x1.
• Basic Box: Intel Atom (4-core or 2-core); up to 8 GB DDR4 memory; M.2 SSD x2 or SD card x1.

Display and Touch Technology

The PS6000 Series offers a wide range of display sizes and touch technologies to suit various applications:

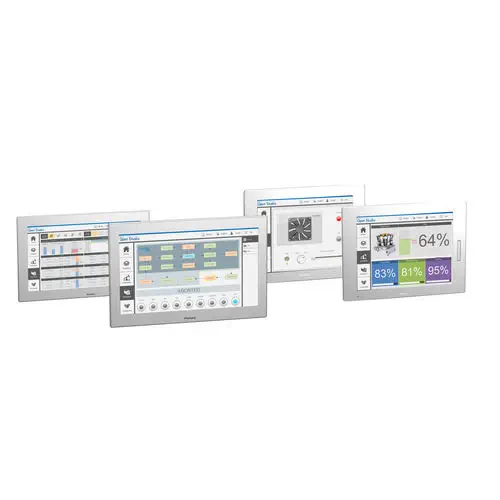

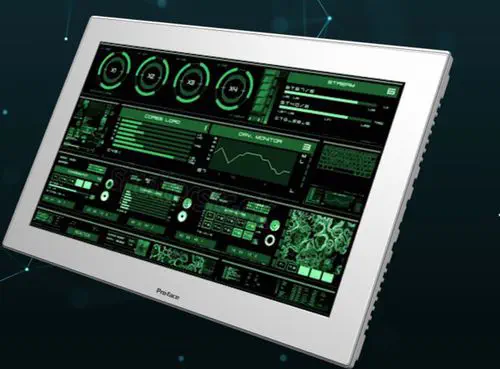

• Display Sizes: 10.1" wide, 12.1" (4:3 & wide), 15" (4:3 & wide), 19" wide, 22" wide.
• Resolutions: Up to Full HD (1920 x 1080) on 19" and 22" wide models.
• Touch Technology: Projected capacitive multi-touch (with noise filter) or resistive multi-touch, supporting glove and water detection modes.

I/O and Expansion Interfaces

• Standard I/O on Box Modules: RS-232C, USB 2.0/3.0 Type-A, USB Type-C, 2x Gigabit Ethernet (RJ45), DisplayPort.
• Expansion Slots (Advanced Box): PCI x1 + PCIe x1 or PCIe x2 or PCI x2 (factory-installed).
• Optional Slot-in Interfaces: Additional serial (RS-232C/422/485), isolated serial, 16DI/8DO, EtherCAT slave, PROFIBUS master/slave, CANopen master/slave, PROFINET RT, and audio.

Environmental Specifications and Certifications

The PS6000 Series is designed for reliable operation in demanding industrial environments. Key specifications include:

• Operating Temperature: 0°C to 55°C (advanced box).
• Storage Temperature: -30°C to 70°C.
• Front Bezel Protection: Up to IP66F, IP67F, UL Type 4X (indoor use only), Type 12, and Type 13.
• Back Panel Protection: IP20.
• Certifications: CE, FCC, cULus Class 1 Division 2 (hazardous locations), ATEX Zone 2/22, DNV, KC, RCM, UKCA.

Software and Operating System

The PS6000 Series runs Windows 10 IoT Enterprise 2019 LTSC or 2021 LTSC (64-bit). It can be used with Pro-face's BLUE Open Studio for HMI/SCADA applications, as well as third-party software for data processing and edge computing.

Applications

The PS6000 Series is suitable for a wide range of industrial applications, including machine control, process visualization, data logging, edge computing, and IIoT gateway functions. Typical industries include automotive, packaging, food & beverage, pharmaceutical, and general manufacturing.
