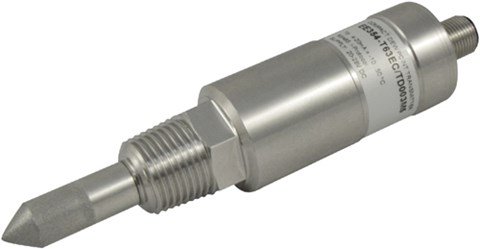

E+E EE354 Dew Point Transmitter is designed for monitoring dew point up to -20°C Td (-4°F Td). The high measurement accuracy of ±1°C Td (±1.8°F Td) in the typical working range of a refrigeration dryer makes the EE354 the ideal solution for OEM manufacturers. The compact design and stainless steel housing make the EE354 easy to install.

The measurement values are issued on an analog 4-20 mA and a digital Modbus RTU output, providing flexibility for integration into various control systems. Excellent long-term stability and temperature compensation across the entire measurement range are important features of the EE354. The transmitter is pressure-tight up to 1160 psi (80 bar), making it suitable for high-pressure compressed air applications.

Using the free EE-PCS configuration software and the Modbus USB converter (available as an accessory), the scaling of the analog output can be modified. This also permits one and two-point adjustments by the user. The EE354 has a response time of less than 30 seconds, ensuring timely detection of moisture changes in dryer systems.

Key Features

• Measurement range: up to -20°C Td (-4°F Td)
• Accuracy: ±1°C (±1.8°F) for refrigerant dryers
• 4-20mA and Modbus RTU outputs
• Pressure-tight up to 1160 psi (80 bar)
• Response time: less than 30 seconds
• Stainless steel design
• Compact size for OEM applications
• Excellent long-term stability
• Temperature compensation across entire range
• Free EE-PCS configuration software
• User-adjustable via optional Modbus USB converter
• 10-28VDC supply voltage

Applications

• Compressed air monitoring
• Refrigeration dryers
• OEM equipment integration
• Industrial process control
