Video/Laser IR Sensor - Metals/Ceramics, 1.6µm | Optris CSvideo 2M

1 / 5

Product Specifications

Manufacturer: Optris

Product Number: CSvideo 2M

Type: Infrared Temperature Sensor with Video and Laser Crosshair Sighting

Temperature Ranges: 2ML: 482 to 1472°F (250 to 800°C); 2MH: 725 to 2912°F (385 to 1600°C)

Spectral Range: 1.6 µm

Optical Resolution: 150:1 (2ML), 300:1 (2MH)

Response Time: 10 ms

Emissivity: 0.1 to 1.1 adjustable

Output: 4-20mA analog output, alarm output

Programmable Functions: Peak hold, valley hold, average, extended hold with threshold/hysteresis

Ambient Temperature Operation: Up to 158°F (70°C) without cooling

Power Supply: 5 to 28 VDC

Enclosure Rating: IP65 (NEMA-4) front mountable, vacuum processes up to 10–3mbar

Documents: Product Manual, Product Specs

Product Description

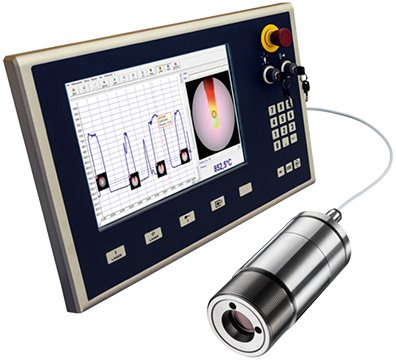

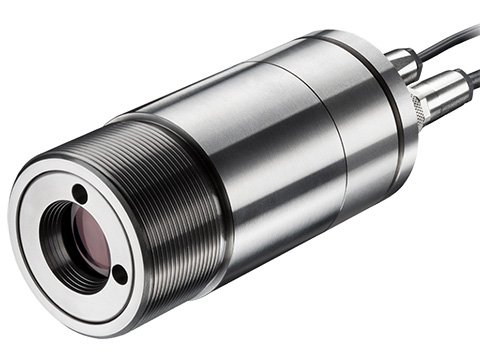

The CSvideo 2M infrared temperature sensor uses both video and laser crosshair sighting to align sensors for accurate temperature measurements of metal or ceramic surfaces in hard-to-reach places. Its short measuring wavelength of 1.6µm reduces errors when measuring surfaces with low or unknown emissivity .

Two models are available: the 2ML covers 482 to 1472°F with 150:1 optical resolution; the 2MH covers 725 to 2912°F with 300:1 optical resolution. Response time is 10ms. Emissivity is adjustable from 0.1 to 1.1 .

The sensor features peak hold, valley hold, average, and an extended hold function with threshold and hysteresis. Outputs include 4-20mA analog and alarm output. It can be used in temperatures up to 158°F without additional cooling .

The sensor operates on 5 to 28VDC power supply and is IP65 NEMA-4 front mountable, suitable for vacuum processes up to 10–3mbar. The Optris Compact Connect temperature analysis software is available as a free download. Cable is sold separately .
