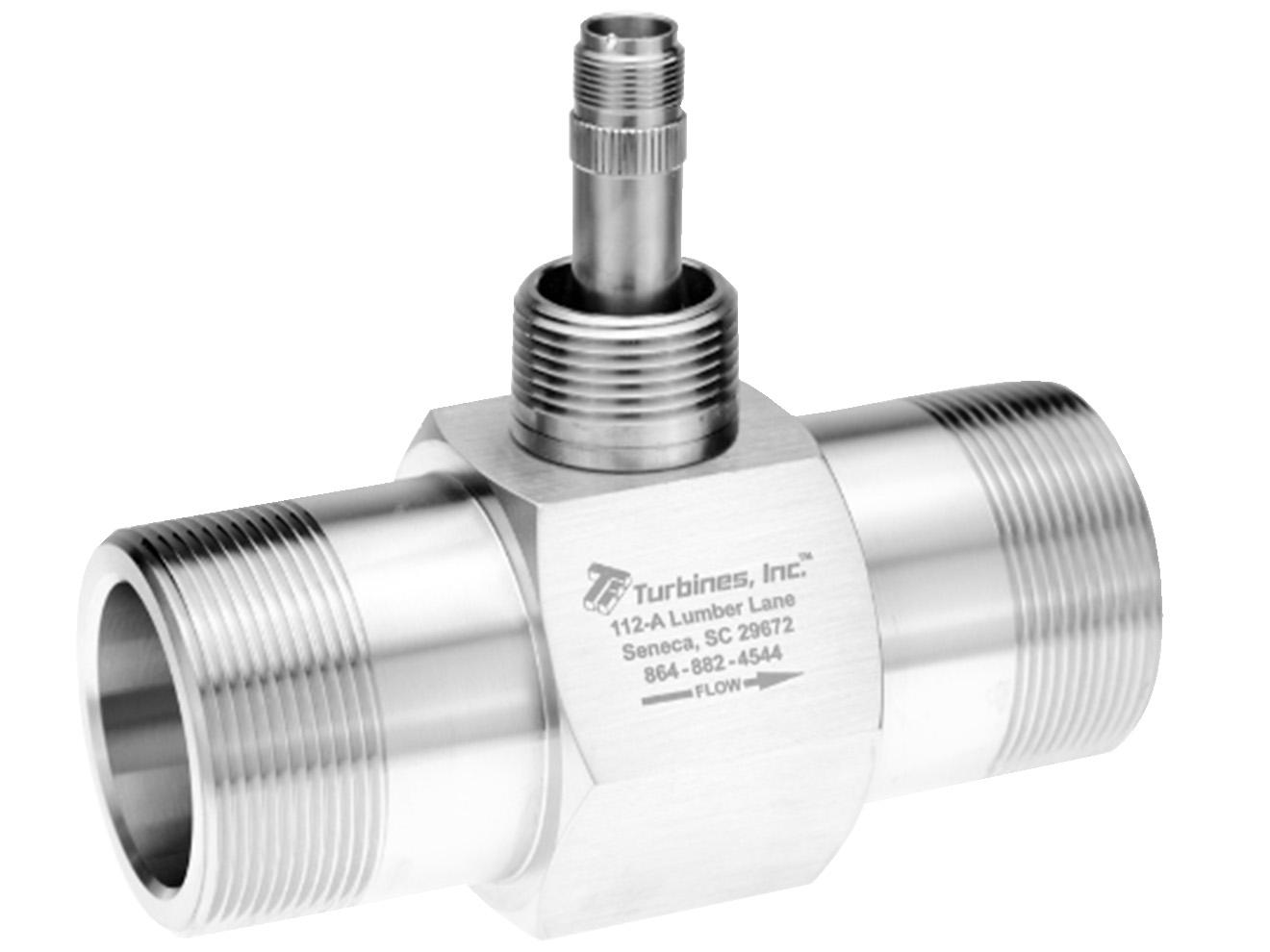

Turbines, Inc. HA Series high accuracy turbine flow meter is a highly accurate and durable turbine flow metering device, designed to provide precise measurement in industrial and commercial applications. Calibrated with state-of-the-art equipment, this flow meter ensures long-lasting performance and reliability.

Equipped with advanced electronic monitoring capabilities, the device supports a wide range of configurations and customizations to meet diverse operational requirements. Its robust construction makes it suitable for harsh environments, offering dependable functionality in applications where precision and resilience are critical. Linearity is ±0.5% over the standard flow range, with ±0.25% available upon request. Flow rate range is 1 to 1250 GPM.

Operating temperature range is -450 to 450°F, extendable up to 850°F with a special coil sold separately. The meter body is constructed of 316 stainless steel with rotor options including 17-4PH, Nickel 200, and Duplex Stainless steel. Bearing options include 440C stainless steel, hybrid ceramic ball bearings, and hard carbon composite. Connection types include NPT and flange, with wafer, 37° AN Flare, and BSP available upon request. CRN certified, ISO 9001 compliant, and features NIST traceable calibration.
