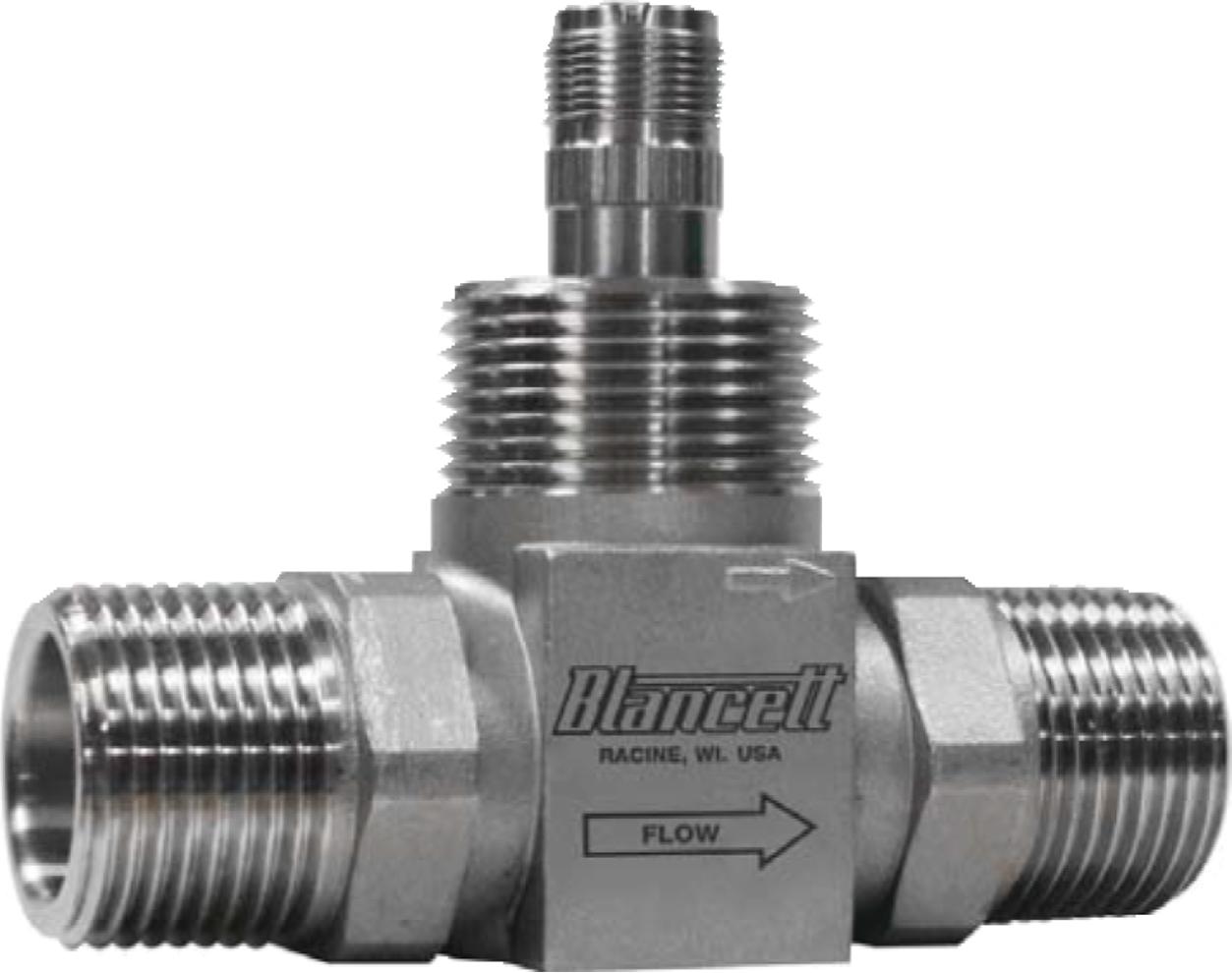

The Blancett 1100 turbine flow meter is designed to withstand the demands of the most rigorous flow measurement applications. It features a rugged 316 stainless steel housing and rotor support assemblies, CD4MCU stainless steel rotor, and abrasive-resistant tungsten carbide rotor shaft and journal bearings, ensuring long-term durability in corrosive and abrasive fluids.

The Model 1100 maintains measurement accuracy and mechanical integrity in the corrosive and abrasive fluids commonly found in oil field water flood projects and many industrial applications. It is designed to operate with the model B2800 Flow Monitor and meets a wide range of measurement requirements, making it ideal for applications such as pipelines, production/injection fields, in-situ mining operations, offshore facilities, and other industrial applications.

Flow ranges cover from 0.6-3 gpm up to 500-5000 gpm depending on bore size (3/8 to 10in). Accuracy is ±1% of reading for 7/8in and larger meters, with ±1% of reading accuracy over the upper 70% of the measuring range for small meters. Repeatability is ±0.1% with a 10:1 turndown ratio. Operating temperature range is -150 to 350°F (-101 to 177°C), extendable to 425°F (232°C) with a high-temperature pick-up.

The meter is simple to install and service. It operates in any orientation (horizontal to vertical) as long as the flow direction arrow is aligned with actual line flow. For optimum performance, the flow meter should be installed with a minimum of 10 diameters upstream straight pipe length and 5 diameters downstream straight pipe length.
