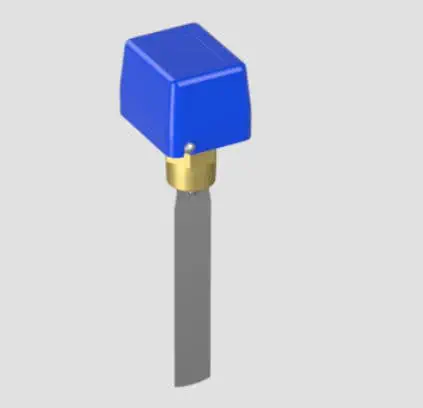

The Henry Technologies 4200-1 is a reliable liquid flow switch designed for operation control and adjusted flow rate monitoring in industrial systems. It features an SPDT (Single Pole Double Throw) design, housed in a sturdy PVC cover with a plated mounting bracket and stainless steel internal frame. The switch is ideal for applications requiring accurate, reliable, and rugged construction, such as water loops and glycol systems.

Technical Specifications

• Maximum Working Pressure: 9.8 Barg (142.14 PSIg)
• Operating Temperature Range: Max ambient temperature: +80°C (+176°F); Max liquid temperature: +150°C (+302°F)
• Refrigerant Compatibility: Water, ethylene glycol, or any liquid not harmful to phosphor bronze/brass and/or classified as hazardous fluids.
• Available Sizes: 1"-11 NPT
• Pipe Size Compatibility: Can be set for 3" to 6" pipes, with field-adjustable flow conditions.
• Product Certification: N/A
• Installation Requirement: The pipe on both sides of the switch must be 5 times the pipe diameter from the nearest elbow, valve, or other pipe restriction.
• Available Downloads: 3D STEP file (4200-1.step) and PDF datasheet (4200-1 Cust revA.pdf) available on the product page.

Applications

The 4200-1 is ideal for flow/no-flow detection and pump protection in water loops, glycol systems, and other industrial fluid handling applications where reliable, field-adjustable flow monitoring is required.
