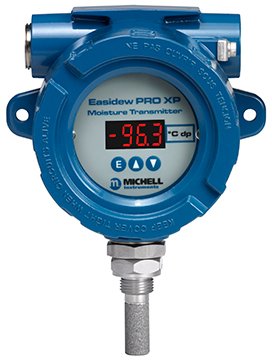

The Michell Instruments Easidew Pro XP dew point transmitter offers up to ±1.8°Fdp (±1°Cdp) moisture measurement from -166 to +68°Fdp (-110 to +20°Cdp) in gases or 0 to 1,000 ppmW in liquids, in an explosion-proof aluminum or 316 stainless steel housing. Explosion and flameproof certifications include ATEX, IECEx, cCSAus, INMETRO, and TC TR EX approvals.

An optional display can be added to include programmable meter range, decimal point, overload limits, and meter scales. Featuring an industry standard 3/4 inch UNF process connection, the Easidew Pro XP also offers a 2-wire 4 to 20mA user-configurable output. A standard flow rate of 0 to 10 m/sec is achieved via direct insertion, or an optional sampling block can be added for a flow rate of 1 to 5 Nl/min.

Each Easidew Pro is cleaned for enriched oxygen and includes an EN 10204 3.1 material certification. The maximum operating pressure range is 45 MPa (450 barg). Electronics conformal coating provides additional protection in harsh environments.

Key Features

• IECEx, CSA, INMETRO, ATEX, TC TR EX certified
• Gas range: -166 to +68°Fdp (-110 to +20°Cdp)
• Liquid range: 0 to 1,000 ppmW
• Accuracy: up to ±1.8°Fdp (±1°Cdp)
• 2-wire 4-20 mA output
• 45 MPa (450 barg) pressure rating
• 3/4 inch UNF process connection
• Electronics conformal coating
• Oxygen service cleaned
• IP66 (NEMA 4) rating
• EN 10204 3.1 material certification

Applications

• Hazardous area moisture monitoring
• Natural gas processing
• Petrochemical plants
• Refinery applications
• Offshore platforms
