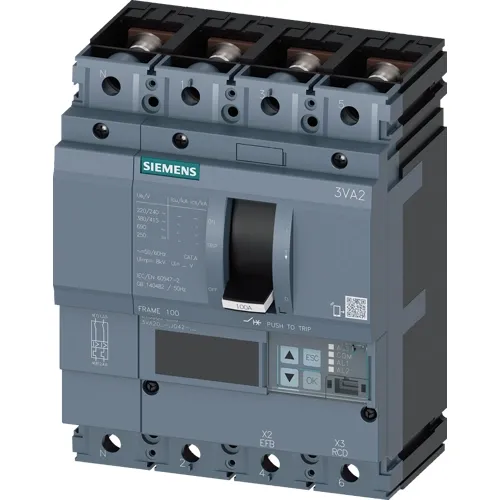

The 3VA2063-5JQ42-0AA0 is a 4-pole molded case circuit breaker from the Siemens SENTRON 3VA2 series, equipped with the advanced ETU560 LSIG electronic trip unit. It combines overload (L), short-time (S), instantaneous (I) and ground-fault (G) protection with an adjustable neutral conductor protection (OFF or up to 160% of In). The ground-fault function can be switched off, with configurable pickup (Ig: 0.25-1x In) and time delay (tg: 0.05-0.8 s). This model is terminated via a nut keeper kit for secure busbar or lug connections.

Key Features & Technology

• Four-pole switching with fully adjustable LSIG protection and N-conductor protection.
• Electronic trip unit ETU560 with integrated LCD display for measured values.
• Optional communication: Modbus TCP, Modbus RTU, PROFINET, PROFIBUS (via external modules).
• Modular internal accessories (auxiliary switches, shunt trips, motor operators).
• Available mounting versions: fixed, plug-in, withdrawable (fixed mount on 35 mm DIN rail).

Technical Specifications

• Rated Current (In): 63 A
• Overload Protection (Ir): 25 A ... 63 A
• Short-Circuit Protection (Isd): 0.6 ... 10 x In
• Instantaneous Protection (Ii): 1.5 ... 12 x In
• Ground-Fault Protection (Ig): 0.25 ... 1 x In, tg = 0.05 ... 0.8 s
• Breaking Capacity Icu @ 415 V AC: 55 kA (Class M)
• Rated Insulation Voltage (Ui): 690 V AC
• Degree of Protection: IP40 (front), IP20 (overall)
• Operating Temperature: -20 °C to +70 °C
• Standard: IEC/EN 60947-2

Installation & Application

• Terminal: Nut keeper kit for reliable, high-torque connections.
• Mounting: Fixed on 35 mm DIN rail, standard companion to SENTRON panelboards.
• Typical Applications: Industrial distribution boards where 4-pole switching, neutral monitoring, and ground-fault detection are mandatory.
