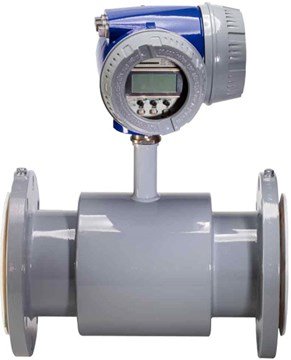

The Badger Meter M3000 electromagnetic flowmeter provides non-intrusive flow measurement in almost any conductive fluid or slurry. Combining a flow detector and amplifier, the M3000 is a versatile, user-friendly flow metering system for a variety of industrial and municipal applications. It is FM approved for Class I, Div 2 hazardous locations as well as CSA certified and CE and FCC compliant .

The flow detector—including flow tube, isolating liner and measuring electrodes—is available in sizes from 1/4" (0.02 to 5 gpm) to 24" (180 to 53,778 gpm). Designed under strict quality standards, the detector has no parts in the flow stream resulting in no pressure loss. Accuracy is not affected by temperature, pressure, viscosity, density or flow profile. With no moving parts, maintenance is practically eliminated .

The amplifier features sophisticated, processor-based signal conversion with accuracies of ±0.25%. Programmable parameters include calibration factors, totalizer resets, unit of measure, analog and pulse output scaling, flow alarm functions, language selection, low-flow cutoff, noise dampening factor, and excitation frequency selection. Flow data and diagnostic messages are displayed on the backlit 4-line x 16-character LCD .

Features include uni-directional or bi-directional flow, empty pipe detection, pulsed DC magnetic field for zero point stability, no pressure loss, and corrosion resistant liners for long life. Integral and remote signal converter options are available, with optional grounding rings or grounding electrode .
