Product Specifications
- Manufacturer
- Fluke
- Part Number
- FLUKE-117
- Type
- True RMS Multimeter
- Display
- 6000 count, 33 segment bargraph
- Features
- VoltAlert non-contact voltage, AutoVolt, LoZ
- Functions
- V, I, Ω, frequency, capacitance, continuity
- Safety
- CAT III 600V
- Documents
- Product Manual, Product Specs
Product Description

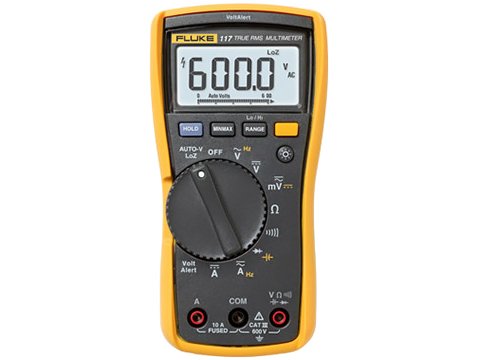

The Fluke 117 multimeter is the ideal meter for demanding settings like commercial buildings, hospitals, and schools. The 117 multimeter includes integrated non-contact voltage detection to help get the job done faster.
The Fluke 117 multimeter features include VoltAlert ™ technology, which allows for non-contact voltage detection. The AutoVolt feature automatically selects AC/DC voltage. The LoZ function helps prevent false readings due to ghost voltage. The Fluke 117 multimeter has a display with a large, white LED backlight to facilitate work in poorly lit areas.
Fluke 117 multimeters measure True RMS for accurate measurements on non-linear loads. These multimeters have a 10A rating with the ability to handle a 20A overload for 30 seconds. The Fluke 117 measures resistance, continuity, frequency and capacitance. Signal fluctuations are easily recorded and identified with the Min/Max/Average over elapsed time capability.
The Fluke 117 multimeter is compatible with the Fluke ToolPak ™ magnetic hanger for hands-free operation. The Fluke 117 has CAT III 600 V safety rating. The multimeter ships complete with TL75 test leads, holster, user's manual and 9V battery.
True RMS Multimeter - Non-Contact Voltage | Fluke 117
Product Specifications
- Manufacturer
- Fluke
- Part Number
- FLUKE-117
- Type
- True RMS Multimeter
- Display
- 6000 count, 33 segment bargraph
- Features
- VoltAlert non-contact voltage, AutoVolt, LoZ
- Functions
- V, I, Ω, frequency, capacitance, continuity
- Safety
- CAT III 600V
- Documents
- Product Manual, Product Specs
