The Fisher 67C series high-pressure (pounds-to-pounds) LP-gas regulators meet a variety of applications in liquid or vapor service. A compact body design makes this series ideal for installations where space is limited. Choose from one of three adjustment methods (wrench, handwheel, or dial) or a fixed, tamper resistant model.

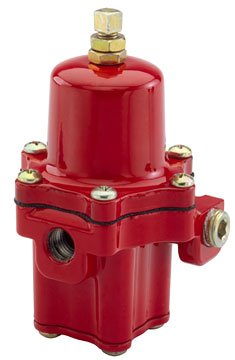

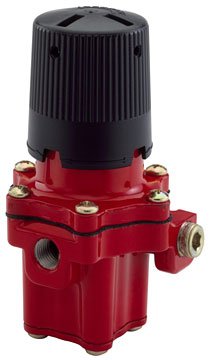

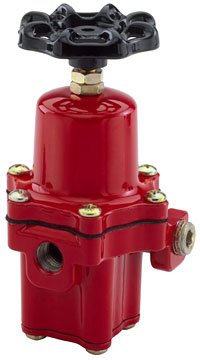

The 67CW is the wrench adjustment model available in outlet pressures of 3-20 psi (675,000 BTU/hr), 3-35 psi (750,000 BTU/hr), and 50-135 psi (1,000,000 BTU/hr). The 67CH handwheel version is available in 3-20 psi (675,000 BTU/hr), 3-35 psi (750,000 BTU/hr), and 30-60 psi (1,200,000 BTU/hr). The 67CD with dial calibration provides accuracy nearly equivalent to a commercial pressure gauge, eliminating the need for a pressure gauge on portable applications. Multiple outlet ranges are available up to 40-100 psi with capacities to 1,000,000 BTU/hr.

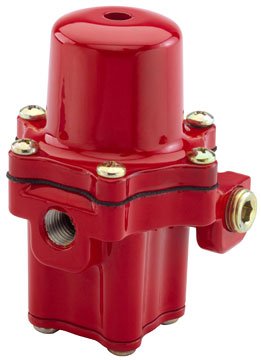

The 67CN is a compact unit with a fixed (non-adjustable) outlet setting and a tamper resistant spring case, available in setpoints of 10 psi (400,000 BTU/hr), 15 psi (600,000 BTU/hr), and 20 psi (750,000 BTU/hr). Maximum inlet pressure is 250 psig (17.2 bar) with emergency outlet 50 psig over outlet. Operating temperature range is -20 to 180°F (-29 to 82°C). All models are UL listed, CRN certified, and CE approved.
