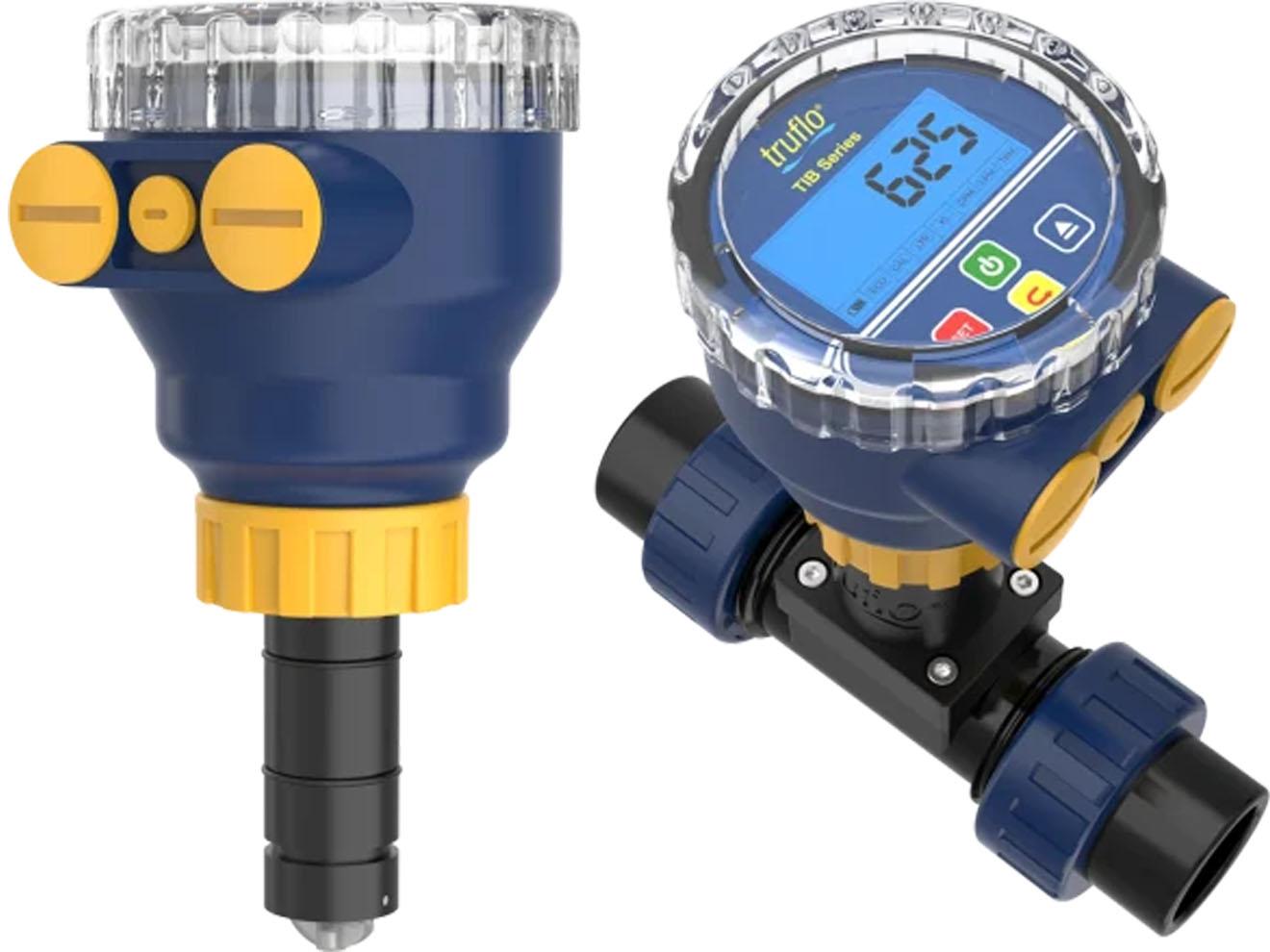

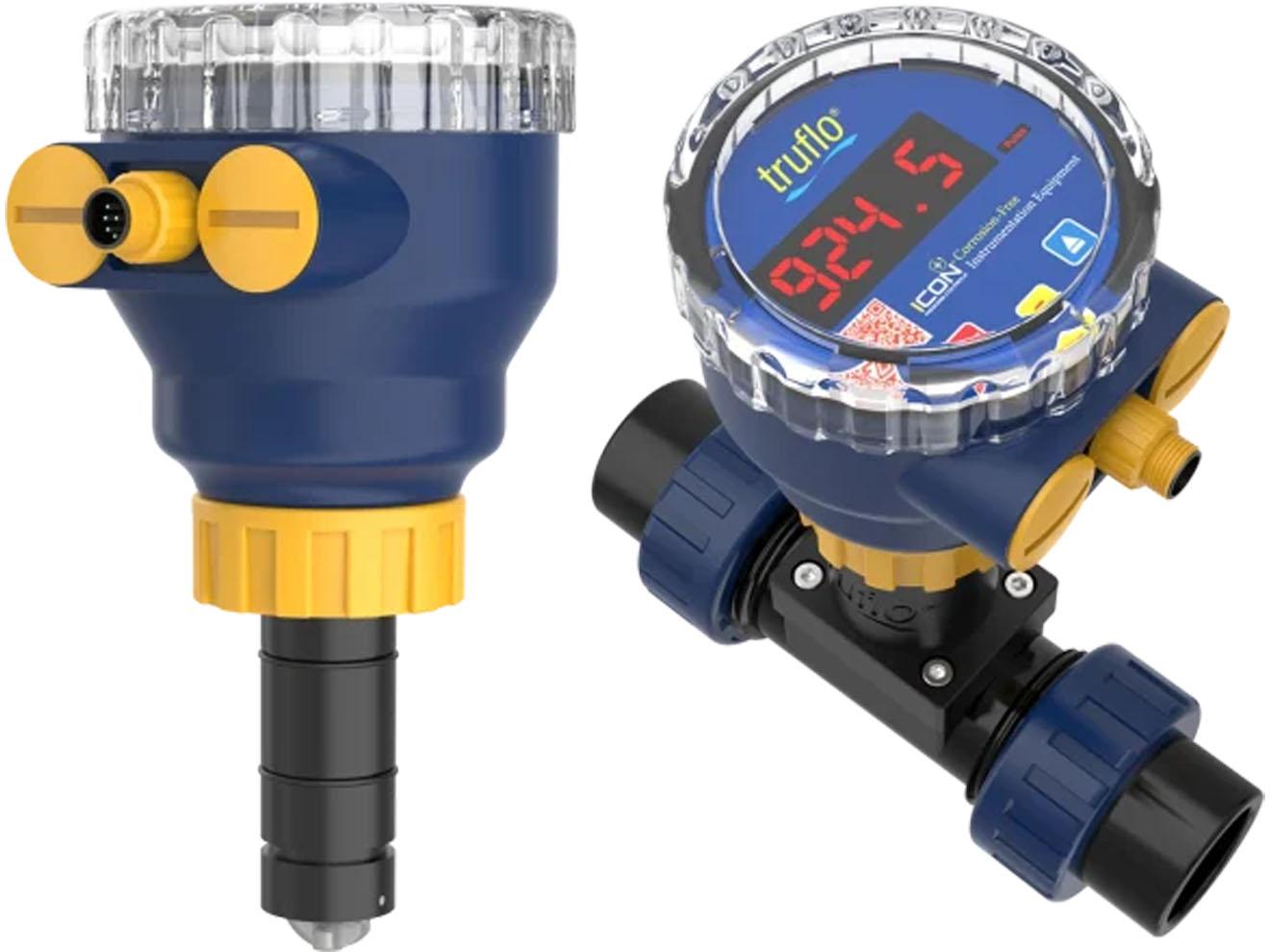

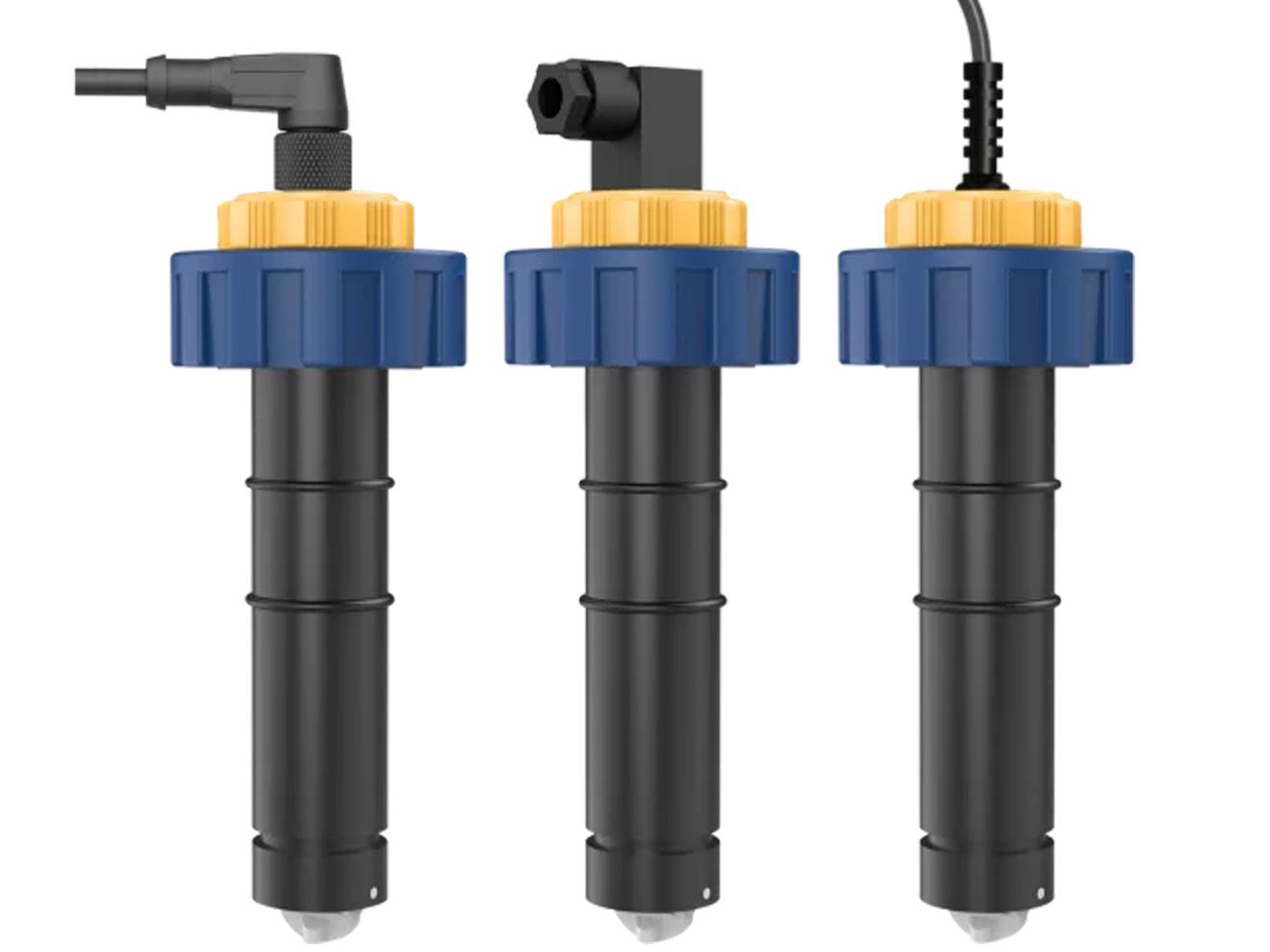

The ICON Truflo TI Series Paddle Wheel Flow Meters are easy to install with exceptional long life performance. The Truflo TI Series Paddle Wheel Flow Sensors are highly repeatable, rugged sensors that offer exceptional value with little or no maintenance. The TI Series has a process-ready open collector signal with a wide dynamic flow range of 0.1 to 10 m/s (0.3 to 33 ft/s). The sensor measures liquid flow rates in full pipes and can be used in low pressure systems.

Accuracy is ±0.50% with materials available in PVC, PP, PVDF, and 316 stainless steel. Size range covers 1/2in to 24in. The sensor features low pressure drop, password protected security, and a rotatable display. Zirconium ceramic rotor pin and bearings ensure long life, and the paddle wheel assembly carries a lifetime warranty.

Applications include liquid chemical flow measurement, filtration systems, water & wastewater monitoring, industrial chemical distribution, process chemical skids, liquid consumption, and discharge verification.
