Product Specifications
- Manufacturer
- Amprobe
- Product Number
- TMA5
- Type
- Mini Vane Anemometer
- Wind Speed Range
- 0.5 to 44.7 mph; 60 to 3937 ft/min; 0.4 to 38.8 knots; 1.1 to 20.0 m/s; 0.7 to 72.0 km/h; 1 to 8 Beaufort
- Wind Speed Accuracy
- ±5% of reading
- Air Temperature Range (Internal)
- 32°F to 122°F (0°C to 50°C)
- Air Temperature Range (External)
- -4°F to 158°F (-20°C to 70°C)
- Humidity Range
- 5% to 95% RH
- Humidity Accuracy
- ±3.5% RH (10-90% at 25°C)
- Response Time
- 2 sec (wind speed); 60 sec (temp/humidity)
- Display
- LCD, 21 x 34 mm
- Power
- CR2032 battery
- Auto Power Off
- 5 minutes (disableable)
- Dimensions
- 136 x 46 x 17 mm
- Weight
- 135 g
- Included Accessories
- External temperature probe, CR2032 battery, wrist strap
- Documents
- Product Manual , Product Specs
Product Description

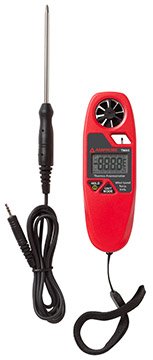

The Amprobe TMA5 is a compact, pocket-sized mini vane anemometer designed for HVAC/R technicians and indoor air quality professionals. It measures air velocity, temperature, humidity, dew point, wet bulb, and wind chill in a single handheld instrument.
Air velocity is displayed in selectable units including mph, ft/min, knots, m/s, km/h, and Beaufort. An external temperature probe is included for duct measurements. Features include data hold, max wind speed display, and auto power off with disable function.
Applications include HVAC system balancing, ventilation testing, refrigeration maintenance, and indoor air quality assessments.
Features
- Measures air velocity, temperature, humidity, dew point, wet bulb, wind chill
- Selectable wind units: knots, Beaufort, ft/min, mph, m/s, km/h
- External temperature probe included
- Data hold and max wind speed display
- Auto power off with disable feature
- Pocket-size design with wrist strap
- Low battery indication
Mini Vane Anemometer - Air Velocity, Temp, Humidity | Amprobe TMA5
Product Specifications
- Manufacturer
- Amprobe
- Product Number
- TMA5
- Type
- Mini Vane Anemometer
- Wind Speed Range
- 0.5 to 44.7 mph; 60 to 3937 ft/min; 0.4 to 38.8 knots; 1.1 to 20.0 m/s; 0.7 to 72.0 km/h; 1 to 8 Beaufort
- Wind Speed Accuracy
- ±5% of reading
- Air Temperature Range (Internal)
- 32°F to 122°F (0°C to 50°C)
- Air Temperature Range (External)
- -4°F to 158°F (-20°C to 70°C)
- Humidity Range
- 5% to 95% RH
- Humidity Accuracy
- ±3.5% RH (10-90% at 25°C)
- Response Time
- 2 sec (wind speed); 60 sec (temp/humidity)
- Display
- LCD, 21 x 34 mm
- Power
- CR2032 battery
- Auto Power Off
- 5 minutes (disableable)
- Dimensions
- 136 x 46 x 17 mm
- Weight
- 135 g
- Included Accessories
- External temperature probe, CR2032 battery, wrist strap
- Documents
- Product Manual , Product Specs
