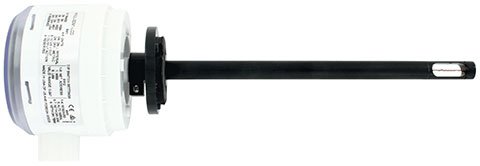

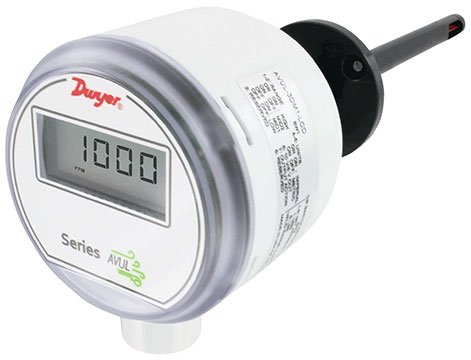

The Dwyer AVUL Series air velocity transmitter is designed to measure air velocity or volumetric flow of clean air and non-combustible, compatible gases—making it suitable for various industrial and HVAC applications. A key advantage of AVUL models is their simultaneous current (4 to 20 mA) and voltage (0 to 5 VDC/0 to 10 VDC) outputs, which provide universal inputs to most monitoring equipment. Users can easily configure the output range, measurement units, and 0 to 5/10 VDC output via local DIP switches, while zero and span adjustments are simplified through digital push buttons.

Dwyer AVUL Series transmitters come with a standard accuracy of ±(5% of reading + 0.2 m/s), with an optional upgrade to ±(3% of reading + 0.2 m/s) for higher precision needs. For local monitoring and configuration convenience, an optional integral 5-digit LCD display is available. Additionally, optional communication protocols—BACnet MS/TP or Modbus® RTU/ASCII—allow multiple units to be daisy-chained, enabling access to comprehensive data (including air velocity, flow, and air temperature) for centralized monitoring and control.

Features

• Suitable for measuring air velocity and volumetric flow of clean air and non-combustible, compatible gases
• Field-selectable ranges to match diverse application needs:
  • 1000, 2000, 3000, 4000 FPM (5, 10, 15, 20 m/s)
• Flexible accuracy options for different precision requirements:
  • ±(5% of reading + 0.2 m/s) standard
  • ±(3% of reading + 0.2 m/s) optional upgrade
• Multiple output signals for universal compatibility with monitoring equipment:
  • 4 to 20 mA, 0 to 5 VDC, 0 to 10 VDC
  • Optional BACnet MS/TP or Modbus® RTU/ASCII communication for daisy-chaining and centralized data access
• Digital push button zero and span adjustments for easy calibration without complex tools

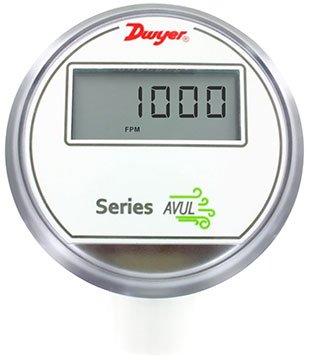

• Optional 5-digit LCD display for convenient local viewing of process values and configuration
• Local DIP switch configuration for output range, units, and 0 to 5/10 VDC output—no external software required
