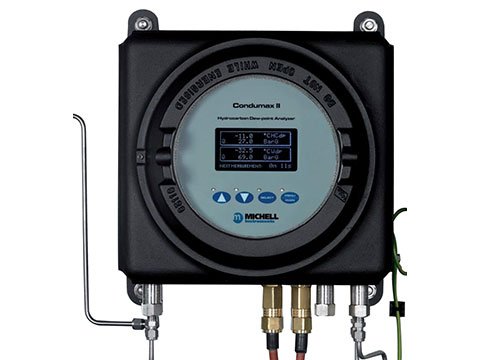

The Michell Condumax II Dew Point Analyzer System is a fully self-contained hydrocarbon dew point analyzer using the proven "Dark Spot" hydrocarbon dew point measurement principle from the highly successful Condumax instrument. Combining a hydrocarbon dew point cell and water dew point measurement in the same compact and lightweight EExd enclosure, Condumax II On-Line requires nothing more than mains power to operate.

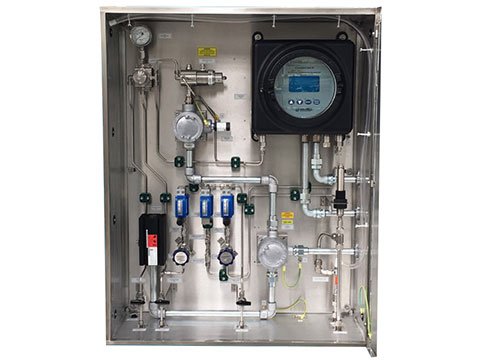

The sampling system includes pressure regulation, flow control and micro-porous membrane filtration with by-pass arrangement and condensate drain to give fast response and protection from liquid hydrocarbon/glycol contamination. Dual channel sampling is available for the combined hydrocarbon/water dew point analyzer package.

The outdoor version is housed in an IP66 rated, insulated stainless steel enclosure. The optional thermostatically controlled heating ensures reliable operation with no condensate or water drop-out prior to measurement. For both indoor and outdoor sampling systems, the Condumax II Main Unit is mounted integral to the Sampling System.

Key Features

• Fully automatic on-line analysis
• Objective, highly repeatable measurements
• 0.5°C hydrocarbon dew-point accuracy
• Fundamental chilled mirror principle
• Patented "Dark Spot" detection technique
• Self-cleaning, no purge or cooling gas required
• Complete sampling system with filtration
• Optional water dew-point analysis
• Modbus RTU output
• Outdoor IP66 insulated enclosure with optional heating
• IECEx, ATEX, CCSAUS, GOST Ex certified

Applications

• Natural gas platforms and terminals
• Pipeline hydrocarbon dew point monitoring
• Gas processing plants
• Hazardous area installations
• Refinery applications
