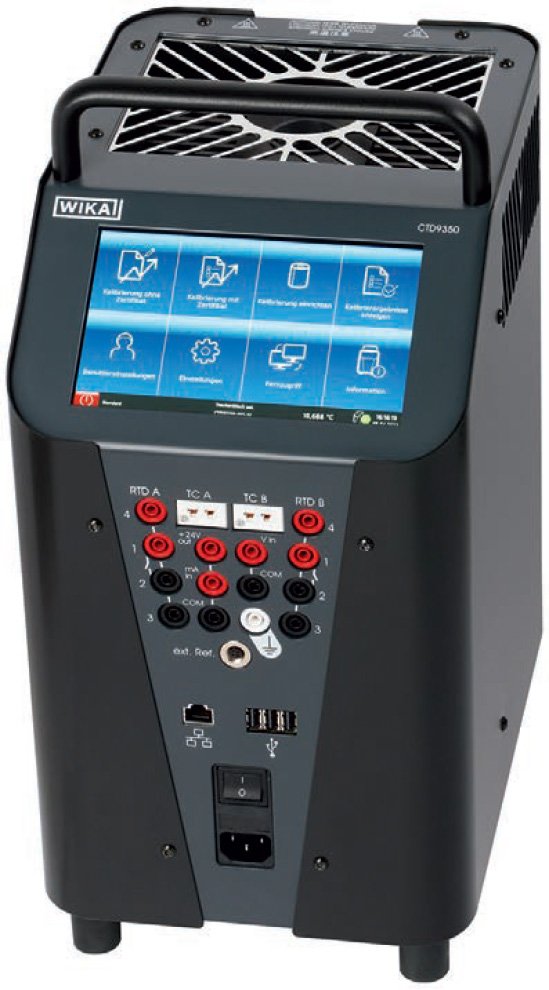

The Mensor CTD9350 dry well calibrator is matched to two different temperature ranges to meet your application needs. The CTD9350-165 is matched to a range of -35 to 165°C, which is ideal for the biotechnology, pharmaceutical, and food industries. For applications above 40°C such as power plants, plant construction, and the chemical industry, the CTD9350-700 with a max temperature of 700°C is used.

The CTD9350 enables the measurement of resistances, thermoelectric voltages, and current signals (from thermometers with 0/4 to 20 mA transmitters) and their direct display in °C. With 0.001°C display resolution and accuracy of ±0.1°C when using an external reference probe, it delivers exceptional performance for demanding calibrations.

Both models feature 150mm immersion depth. The CTD9350-700 uses an Aluminium-Bronze dry-well material, while the CTD9350-165 uses brass. Communication interfaces include USB and Ethernet with OPC UA, Serial communication, and HTTP connectivity, enabling seamless integration into automated calibration systems and IIoT applications.
