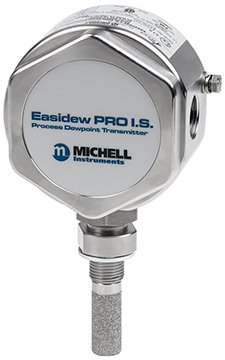

The Michell Instruments Easidew Pro IS dew point transmitter offers up to ±1°Cdp (±1.8°Fdp) moisture measurement, from -110 to 20°Cdp (-166 to 68°Fdp) in gases or 0 to 1,000 ppmW in liquids, in an intrinsically safe housing. Global IS certifications include ATEX, IECEx, TC TR, cCSAus and FM approvals.

Featuring an industry standard 5/8in -18 UNF process connection with bonded seal, the Easidew Pro IS also offers a 2-wire 4 to 20mA user-configurable output. G1/2 and 3/4in UNF adaptors are available for flexibility in installation. Each transmitter is cleaned for enriched oxygen and includes an EN 10204 3.1 material certification. The maximum operating pressure range is 45 MPa (450 barg).

Electronics conformal coating provides additional protection in harsh environments, and the IP66 (NEMA 4) rating ensures reliable operation in demanding industrial conditions.

Key Features

• ATEX, IECEx, TC TR, cCSAus, FM certified
• Gas range: -110 to 20°Cdp (-166 to 68°Fdp)
• Liquid range: 0 to 1,000 ppmW
• Accuracy: up to ±1°Cdp (±1.8°Fdp)
• 2-wire 4-20 mA user-configurable output
• Pressure rating: 45 MPa (450 barg)
• 5/8in -18 UNF process connection with bonded seal
• G1/2 and 3/4in UNF adaptors available
• Electronics conformal coating
• Oxygen service cleaned
• IP66 (NEMA 4) rating
• EN 10204 3.1 material certification

Applications

• Hazardous area moisture monitoring
• Natural gas processing
• Petrochemical plants
• Refinery applications
• Offshore platforms
