Product Specifications
Brand: Siemens
Part Number: 5UB1924
Type: Schuko Socket Outlet
Series: DELTA i-system
Rated Current: 10/16 A
Rated Voltage: 250 V AC
IP Rating: IP20
Terminal Type: Screwless Push-In Terminals
Hinged Cover: No
Increased Touch Protection: Yes
Labeling Field: No
Color: Carbon Metallic
Cover Plate: 55 x 55 mm
Net Weight: 0.091 kg
Product Description
Is touch protection alone worth the upgrade from the base model?
Increased touch protection (erhöhter Berührungsschutz) means the live socket contacts sit deeper inside the housing than on a standard Schuko outlet, preventing a standard VDE 0620 test finger from reaching them. The 5UB1924 adds this feature to the base 5UB1921 platform without the hinged cover or labeling field. The resulting product weighs 91 g — 13 g more than the 78 g base model, entirely from the deeper contact recess and associated housing geometry. For schools, daycare centers, and pediatric healthcare facilities, touch protection alone satisfies the safety requirement without the dust-ingress function of a hinged-cover model. For standard residential and office use, the base 5UB1921 is sufficient.
How does the 5UB1924 compare to the hinged-cover 5UB1920?
Both include increased touch protection. The 5UB1920 adds a spring-loaded hinged cover; the 5UB1924 does not. The choice comes down to a single question: does the installation environment have airborne dust, splash risk, or small children who might poke objects at the socket? If yes, the 5UB1920 covers both risks with its dual-layer protection. If the only requirement is preventing electrical contact during deliberate probing — without dust or splash exposure — the 5UB1924 delivers the same electrical safety at a marginally lower weight and cost.
Related Products
- Siemens 5UB1556 — Electric white Schuko with overvoltage protection
- Siemens 5UB1551-0KE — Electric white Schuko socket, 100-pack kit
- Siemens 5UB1518-0SB01 — Soft black i-system SCHUKO with increased touch protection
- Siemens 5TG2564 — Dual Connection, 60mm, Titanium

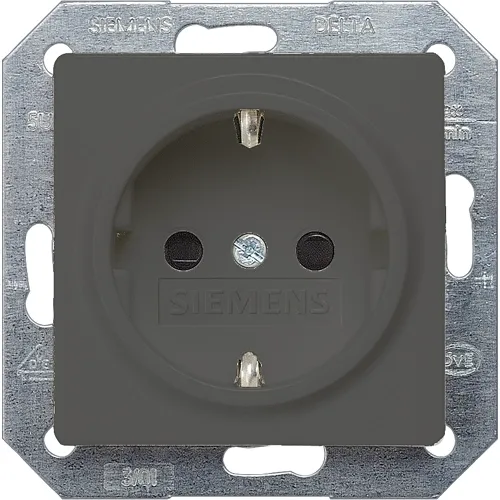

Siemens 5UB1924 DELTA i-system Carbon Metallic Schuko Socket with Touch Protection, 16A 250V
