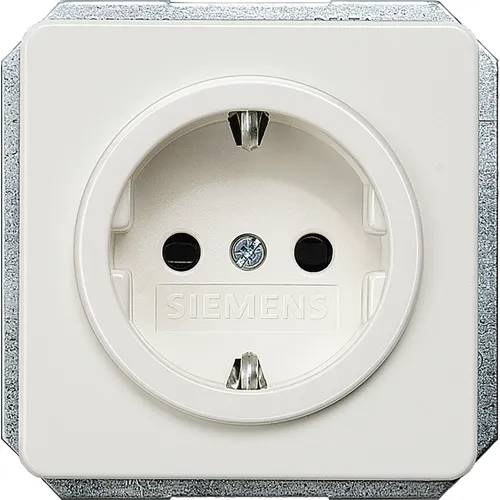

The Siemens 5UB1405 is the increased-touch-protection version of the DELTA profil SCHUKO Type F socket. It looks nearly identical to the standard 5UB1403, but the internal contact carrier is redesigned so that live parts sit deeper inside the socket body — inaccessible to a standard test finger.

What does increased touch protection actually change?

The socket apertures are shaped with tighter openings, and the live contacts are recessed roughly 3 mm deeper than on a standard SCHUKO socket. A child's finger, a screwdriver tip, or a thin metal object inserted straight into the aperture hits the insulating shroud before it can reach the energized contact. This satisfies the VDE 0620 requirement for installations in schools, kindergartens, hospitals, and publicly accessible buildings — without needing a hinged cover.

5UB1403 vs 5UB1405 — how to choose?

Both are DELTA profil Type F SCHUKO sockets in titanium white with screwless plug-in terminals and 65x65mm plates. The 5UB1403 has standard contact geometry; the 5UB1405 has increased touch protection. If the building code or project specification does not mandate increased touch protection, the 5UB1403 is sufficient and slightly cheaper. If the installation is in a public or child-accessible area, the 5UB1405 is the code-compliant choice. The two are mechanically interchangeable — same frame, same box, same wiring method.
