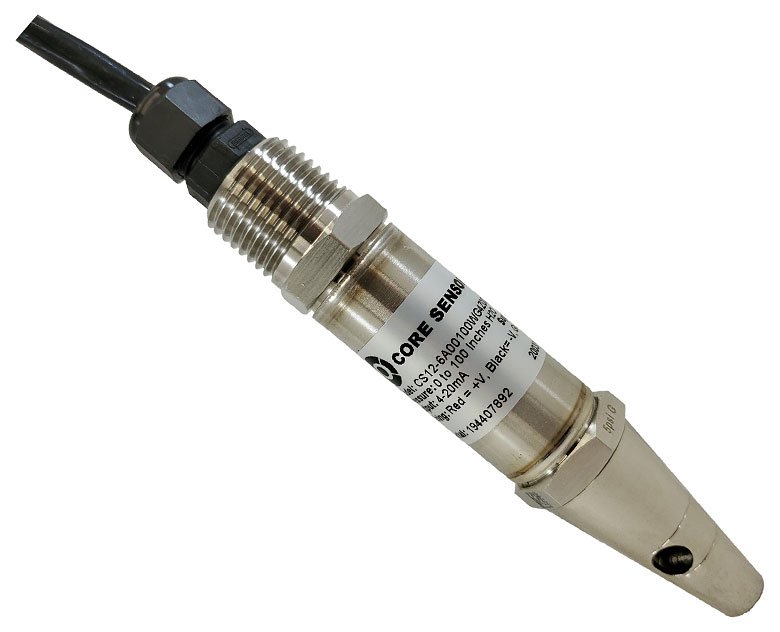

The Core Sensors CS12 submersible pressure transducer is designed for liquid level measurement applications. The CS12 features a 316L stainless steel diaphragm and oil-filled sensor element. Precision welds and a high-strength cable gland prevent liquids from entering the electronics. A wide diameter vent tube quickly equalizes the barometric pressure within the sensor body to ensure accurate level measurements. The sensor also offers nylon strain relief, a Buna-N form seal, and a Viton o-ring.

The CS12 is available in various output signals including 4-20mA loop powered for long distance transmissions and voltage outputs for low-power, low-current consumption. Pressure ranges higher than 100 psi are available for non-submersible applications.

Applications: Fuel tank level measurement, Ballast tanks, Flood monitoring, Depth measurement.
