Product Specifications
- Brand
- Core Sensors
- Model Number
- CS10
- Type
- Industrial Pressure Transducer
- Pressure Ranges
- Vacuum to 40,000 psi
- Accuracy
- ≤±0.25% BFSL (≤±0.5% for ≤2 psi and >10,000 psi)
- Stability
- ≤±0.25% FS
- Documents
- Product Specs
Product Description
The Core Sensors CS10 industrial pressure transducer uses MEMS silicon strain gages mounted to a stainless steel or nickel alloy sensing element. The ASIC electronics offer analog voltage or 4-20mA loop powered output signals. Various process connections are available in 17-4PH, 316L or nickel alloy including Hastelloy C276 and Inconel 718. Electrical connections include cable or various integral connectors. Semi-custom and custom designs are available.
Applications: Water pressure monitoring, hydraulic and pneumatic equipment, HVAC/R controls, hydrogen (316L SS only), building controls.

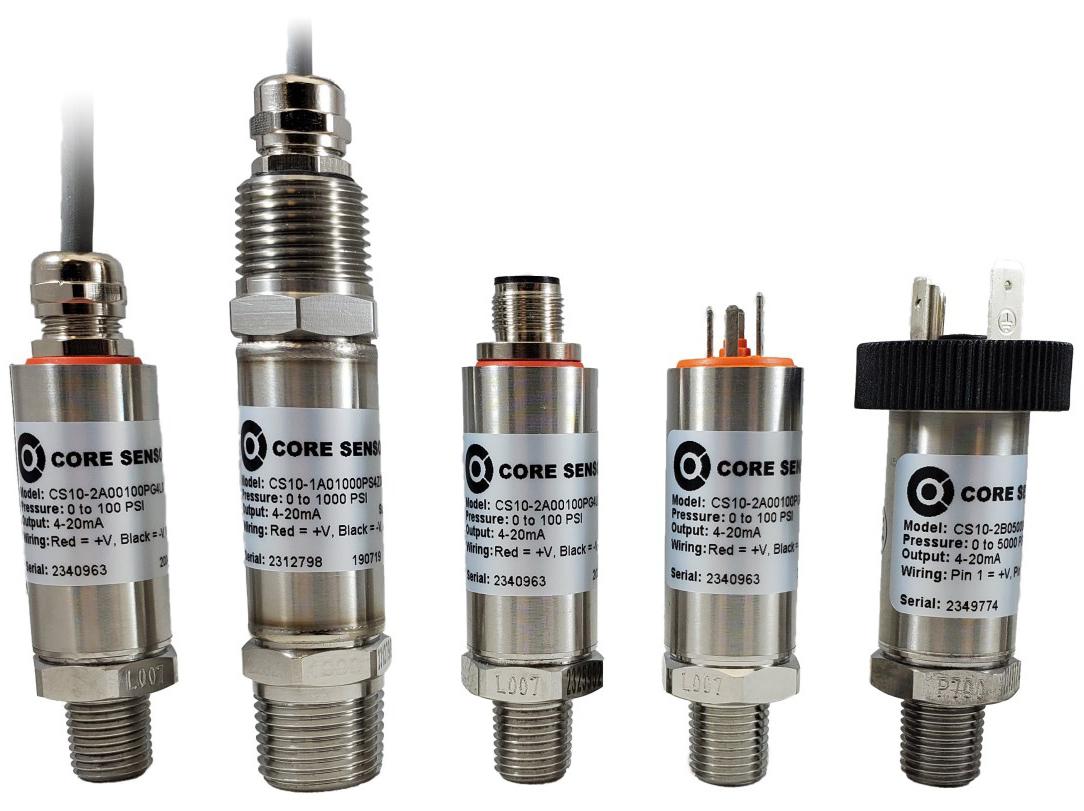

Industrial Pressure Transducer - 40,000 psi | Core Sensors CS10
Product Specifications
- Brand
- Core Sensors
- Model Number
- CS10
- Type
- Industrial Pressure Transducer
- Pressure Ranges
- Vacuum to 40,000 psi
- Accuracy
- ≤±0.25% BFSL (≤±0.5% for ≤2 psi and >10,000 psi)
- Stability
- ≤±0.25% FS
- Documents
- Product Specs
