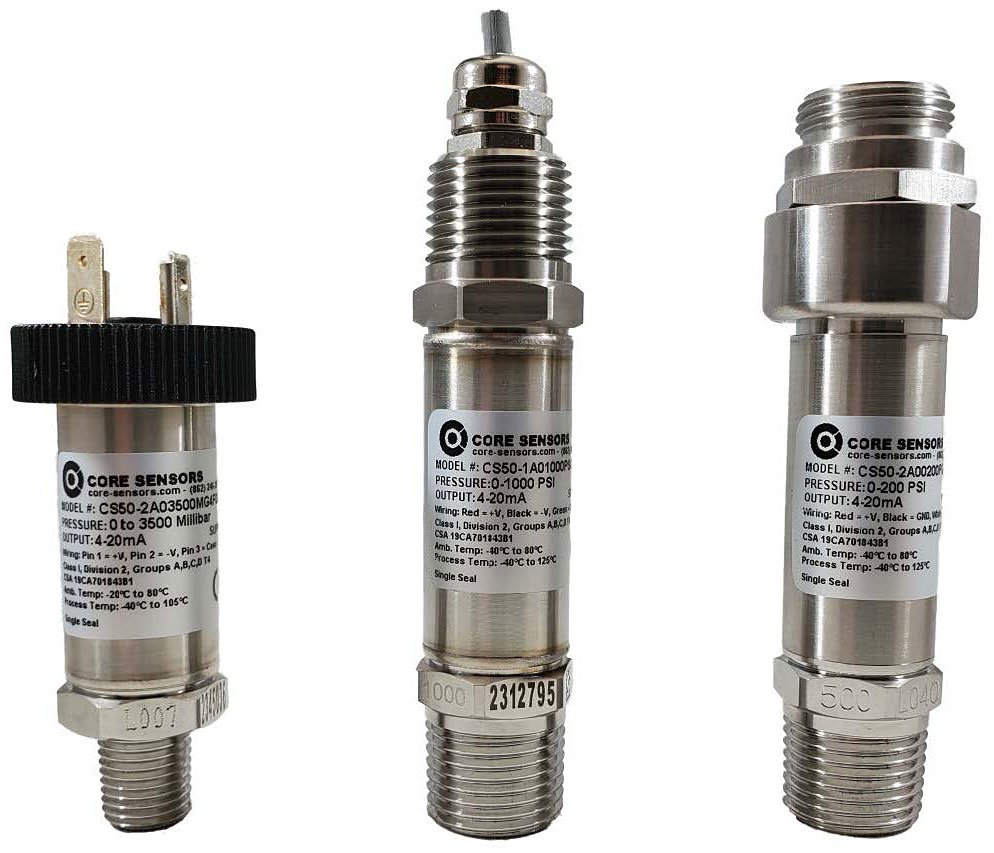

The Core Sensors CS51 non-incendive low pressure transducer is designed for measurements of liquids and gases in Class 1, Division 2 locations. It features reverse polarity, EMI protection and an all-welded stainless steel construction for a minimum IP65 rating. The CS51 is an excellent solution for operation in some of the harshest conditions.

Applications include natural gas compression, vapor recovery, and process controls. Key features include pressures from 1 to 49 psi, ≤ ±0.25% BFSL accuracy (≤ ±0.5% BFSL for 2 psi and below), ≤ ±0.25% of full scale stability, 100 million pressure cycles, EMI/RFI protection, and IP65 rating. Operating temperature ranges from -40 to 176°F with media temperature up to 257°F.
