Product Specifications
Brand: Siemens
Part Number: 6EP3322-6SB10-0AY0
Product Type: Switched-Mode DIN Rail Power Supply
Series: LOGO!Power
Input Voltage: 100–240 V AC (85–264 V AC) / 110–300 V DC
Output: 15 V DC / 4 A (60 W)
Efficiency: Approx. 88%
Dimensions (W×H×D): 54 × 90 × 53 mm
Weight: Approx. 200 g
Product Description
The Siemens 6EP3322-6SB10-0AY0 is the highest-power 15 V LOGO!Power switched-mode DIN rail power supply, delivering 60 W at 15 V DC / 4 A. It serves larger specialized 15 V installations — legacy control systems, sensor networks, and industrial electronics requiring a non-standard DC bus — in a 54 mm flat housing matching the LOGO!8 profile.
Key Features
- Wide-range 100–240 V AC input (also accepts 110–300 V DC) for worldwide deployment
- 15 V DC output at 4 A continuous (60 W) — largest 15 V offering in the LOGO!Power family
- 54 mm wide flat design — matches LOGO!8 module profile in distribution boards
- Flexible mounting: 35 mm DIN rail or wall/screw mounting
- Ultra-low no-load power consumption under 0.3 W
- Power reserve for switching capacitive loads — handles inrush without tripping
- Comprehensive protection: short-circuit, overload, overvoltage, overtemperature
- Green LED status indicator for output voltage monitoring
- CE, cULus, CSA, FM, CB, RoHS compliant
Technical Data
| Parameter | Value |
|---|---|
| Input Voltage | 100–240 V AC (85–264 V) / 110–300 V DC |
| Output Voltage | 15 V DC (adjustable) |
| Output Current | 4 A |
| Rated Power | 60 W |
| Efficiency | Approx. 88% |
| Dimensions (W×H×D) | 54 × 90 × 53 mm |
| Weight | Approx. 200 g |
| Operating Temperature | -25 °C to +70 °C (derating applies) |
| Protection Class | IP20 |
| Certifications | CE, cULus, CSA, FM, CB, RoHS |
Applications
The 15 V / 4 A LOGO!Power supply is designed for larger-scale 15 V industrial applications — multi-device legacy control panels, extensive 15 V sensor and transmitter networks, and specialty equipment requiring a higher-power non-standard DC bus. The -6SB10 suffix identifies the 15 V variant. For standard 24 V applications at the same 60 W power level, the 6EP3332-6SB00 provides 24 V DC / 2.5 A.

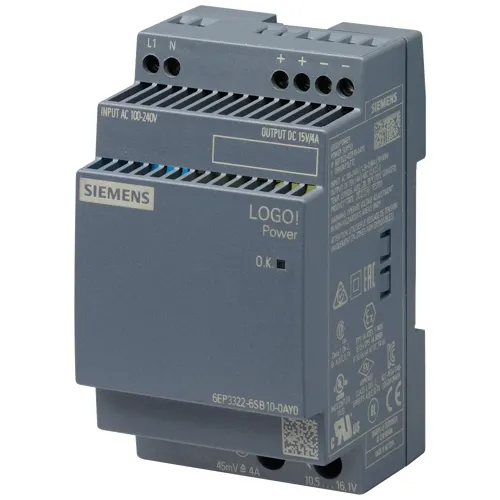

Siemens 6EP3322-6SB10 LOGO!Power 60W DIN Rail Power Supply, 15VDC 4A
