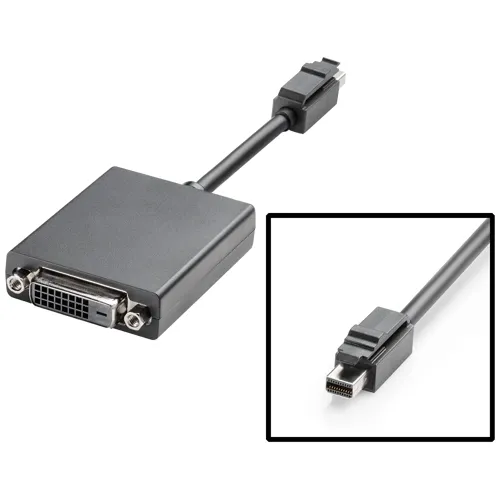

The SIMATIC IPC mini DisplayPort to DVI-D adapter connects the NVIDIA Quadro P400 graphics output (mDP) to a DVI-D monitor input. Digital-only — the DVI-D connector lacks the four analog pins, making the plug physically incompatible with DVI-A and DVI-I sockets that require analog. This is the right choice when all connected displays are confirmed LCD/digital monitors.

How is this different from the DVI variant (3AK00-1XA0)?

Two differences: (1) Connector — DVI-D (digital only) vs DVI (digital + analog). The DVI-D plug cannot physically insert into a DVI-A socket. (2) Packing unit — single unit vs 3-pack. Both use the same mini DisplayPort input and target the same NVIDIA P400 GPU in SIMATIC IPC647E/IPC847E. If the monitor is a known LCD with DVI-D input, this single-unit adapter is the lower-cost option.

Can I use this with a standard DisplayPort monitor?

No — this adapter converts mini DisplayPort to DVI-D, not to full-size DisplayPort. If your monitor has a DisplayPort input, use the mDP-to-DP adapter (6ES7648-3AJ00) instead. If your monitor only has HDMI, you would need a separate DVI-to-HDMI adapter or cable — this adapter alone does not provide HDMI output.
