Product Specifications

Product Description

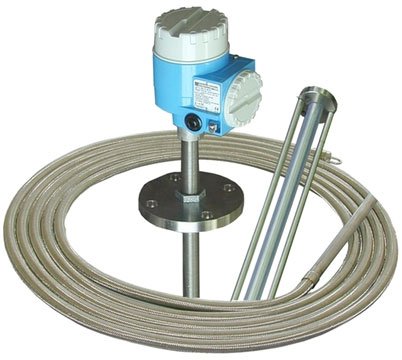

The E+H Prothermo NMT539 is an intelligent HART signal converter, with a combined average temperature sensor and water bottom interface probe. For average temperature measurement consists of precision multispot Pt100 elements. The NMT539 is a highly capable solution for constant average temperature data and water interface data via HART communication. For custody transfer and accurate inventory measurement, it is best suited connected to Proservo NMS5 or Tank Side Monitor NRF590 with Micropilot.

Endress+Hauser
Compare

HART Signal Converter - Average Temp & Water Interface | E+H Prothermo NMT539

Multispot Pt100, ±0.1°C accuracy, 40m range, custody transfer
MPN/Series: NMT539

Product Specifications

Manufacturer
Endress+Hauser
Part Number
NMT539
Type
HART Signal Converter
Temperature Range
-40 to 100°C
Measuring Distance
131.2 ft (40 m)
Accuracy
±0.1°C
Process Connection
Flanges
Documents
Product Manual, Product Specs
