Product Specifications
- Manufacturer
- KEP (Kessler-Ellis Products)
- Product Number
- MB2 MINI-Batcher
- Type
- Mini Batcher / Flow Totalizer and Ratemeter
- Display
- 6-digit totalizer, 4.5-digit ratemeter
- Input
- Pulse input, 10 kHz max; optional 30 mV magnetic pickup input
- Relay Outputs
- 2 relay outputs (5A). One for batch preset (A), second programmable for pre-warn or batch/grand total
- Scaling Factor
- 5-digit scaling factor
- Operation Modes
- Count up to preset (reset to 0) or down from preset (set to preset)
- Controls
- Start, stop, reset via front panel or remote inputs
- Output Options
- Analog output 4-20 mA or 0-20 mA (assignable for rate or batch amount)
- Communications
- RS232/RS422 loop (multi-drop up to 99 units), Modbus RTU RS422/RS485/RS232
- Enclosure Rating
- NEMA 4X / IP65 front panel
- Features
- Security lockout, displays rate, batch size, number of batches or grand total
- Documents
- Product Manual, Product Specs
Product Description
The KEP MB2 MINI-Batcher flow batcher is a 6-digit totalizer and 4.5 digit ratemeter with two relay outputs. One output is dedicated to the batch amount (preset A), while the other can be activated for pre-warn or batch/grand total .
This KEP flow batcher can count up to the preset (reset to 0) or down from the preset (set to preset). Start, stop and reset functions can be activated from the front panel or remote inputs of the KEP MB2 MINI-Batcher flow batcher. An analog output (assignable for rate or batch amount) is available for data logging .
Several KEP units can communicate to a host computer on a single RS232 or RS422 loop. The KEP MB2 MINI-Batcher flow batcher is ideal for all batching applications. It features a 5-digit scaling factor for flexible unit conversion and security lockout to prevent unauthorized changes .
Optional features include 30 mV magnetic pickup input for low-level signals, Modbus RTU communication over RS422/RS485/RS232, and NEMA 4X/IP65 front panel for harsh environments .

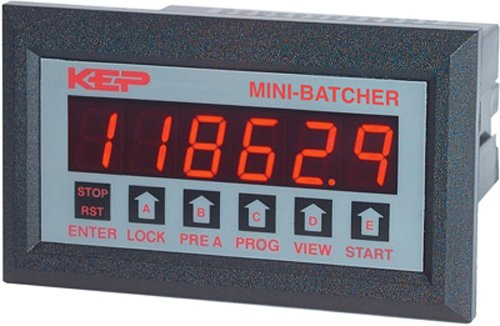

Mini Batcher - 6-Digit Totalizer, 2 Relays | KEP MB2
