Product Specifications

Brand: Siemens

Part Number: 6EP3310-6SB00-0AY0

Product Type: Switched-Mode DIN Rail Power Supply

Series: LOGO!Power

Input Voltage: 100–240 V AC (85–264 V AC) / 110–300 V DC

Output: 5 V DC / 3 A (15 W)

Efficiency: Approx. 76%

Dimensions (W×H×D): 36 × 90 × 53 mm

Weight: Approx. 130 g

Product Description

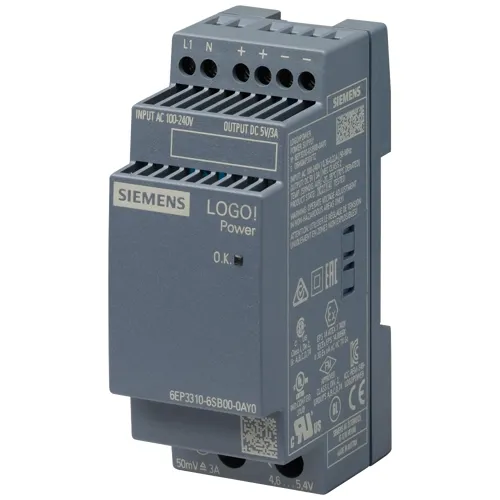

The Siemens 6EP3310-6SB00-0AY0 is a 15 W LOGO!Power switched-mode DIN rail power supply providing 5 V DC at 3 A for logic-level circuits, embedded controllers, and special electronics applications. Its 36 mm flat profile integrates cleanly into distribution boards alongside LOGO!8 modules.

Key Features

Wide-range 100–240 V AC input (also accepts 110–300 V DC) for worldwide deployment
5 V DC output at 3 A continuous — ideal for TTL/CMOS logic circuits and 5 V controllers
36 mm wide flat design — matches LOGO!8 module profile in distribution boards
Flexible mounting: 35 mm DIN rail or wall/screw mounting
Ultra-low no-load power consumption under 0.3 W
Comprehensive protection: short-circuit, overload, overvoltage, overtemperature
Green LED status indicator for output voltage monitoring
CE, cULus, CSA, FM, CB, RoHS compliant

Technical Data

Parameter	Value
Input Voltage	100–240 V AC (85–264 V) / 110–300 V DC
Output Voltage	5 V DC (adjustable)
Output Current	3 A
Rated Power	15 W
Efficiency	Approx. 76%
Dimensions (W×H×D)	36 × 90 × 53 mm
Weight	Approx. 130 g
Operating Temperature	-25 °C to +70 °C (derating applies)
Protection Class	IP20
Certifications	CE, cULus, CSA, FM, CB, RoHS

Applications

This 5 V DC LOGO!Power supply is purpose-built for powering logic-level circuits, microcontrollers, embedded systems, and specialty 5 V industrial electronics where a compact DIN rail mountable PSU is required. For higher 5 V current demands, the 6EP3311-6SB00 provides 6.3 A (31.5 W) in a 54 mm housing.
