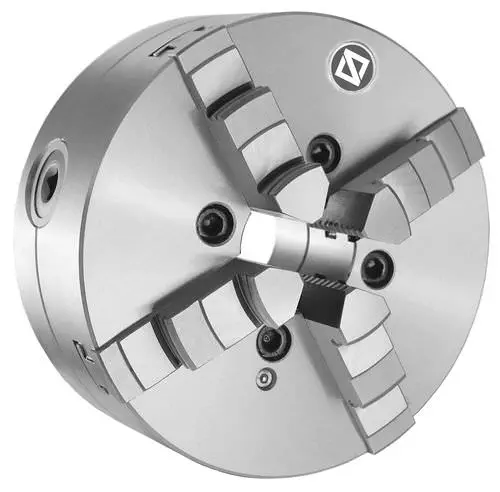

The DIN 55207 chuck from MACK Werkzeuge is a 4-jaw independent manual turning chuck designed for conventional engine lathes. Unlike self-centering scroll chucks, each of the four jaws is advanced and retracted by its own dedicated screw — giving the machinist full control to center square, rectangular, or irregularly shaped workpieces with precision.

When is an independent 4-jaw chuck the right choice?

Independent-jaw chucks are the go-to workholding solution whenever the workpiece is not naturally round or when eccentric turning is required. By adjusting each jaw individually, the operator can dial in runout to within microns on a dial indicator — a level of precision that a scroll mechanism cannot match. The trade-off is setup time: each job requires manual centering, making independent chucks best suited for one-off parts, toolroom work, and repair operations rather than high-volume production.

What does DIN 55207 specify?

DIN 55207 is the German national standard governing 4-jaw independent lathe chucks. It defines dimensional series, mounting interface geometry, jaw travel ranges, and material requirements — ensuring interchangeability across manufacturers who build to the same standard. A chuck marked DIN 55207 conforms to these specifications for through-hole diameter, bolt circle pattern, and overall envelope dimensions appropriate to its size class.
