Product Specifications

Product Description

The NOSHOK 611 series level transmitters measure depth by converting the amount of pressure on a diaphragm into an electrical signal. An optional HART output is available for communicating with a controller. Temperature measurement is also an option via a second output signal. These submersible transmitters are used for the following applications: Well head measurement, Groundwater monitoring, Level measurement in open bodies of water, Sewage lift and pumping stations, Setting ponds and rainwater basins.

NOSHOK

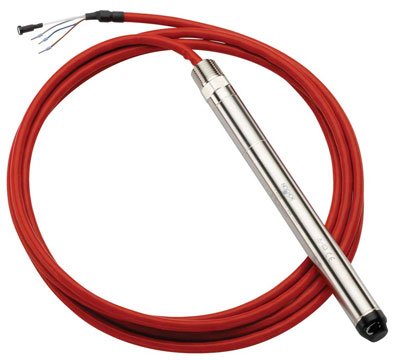

Submersible Level Transmitter - HART Optional | NOSHOK 611 Series

0.87in diameter, up to 100 psi, optional temperature
MPN/Series: 611 Series

Product Specifications

Manufacturer: NOSHOK

Model Number: 611 Series

Type: Submersible Level Transmitter

Diameter: 0.87 in (22.1 mm)

Pressure Range: Up to 100 psi (230.8 ftH2O)

Output: 4-20 mA, optional HART

Options: Temperature output

Documents: Product Manual, Product Specs
