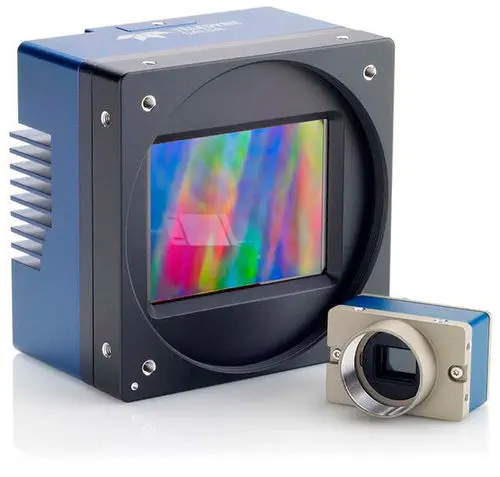

The Falcon4-CLHS series from Teledyne DALSA is a family of high-speed monochrome CMOS cameras engineered for demanding industrial imaging applications including 3D metrology, automated optical inspection (AOI), flat panel and semiconductor inspection, and aerial imaging. The series uses the Camera Link HS (CLHS) interface — delivering up to 10.3 Gb/s per lane across 4 or 7 lanes — to sustain the extreme data throughput required by multi-megapixel sensors at hundreds of frames per second.

Which Falcon4-CLHS variant fits different inspection requirements?

The series spans three core models: the M4480/M4400 variants offer 11.2 MP resolution (4480 × 2496) at up to 609 fps for high-speed production line inspection; the M6200 provides 36 MP (6144 × 6144) at up to 120 fps with 2.5 µm pixels for fine-detail semiconductor and electronics inspection; and the 86M delivers 86 MP (10720 × 8064) at 16 fps for large-area flat panel and printed circuit board inspection where resolution per frame takes priority over speed.

What makes CLHS suited to high-throughput 3D metrology?

Camera Link HS supports fiber-optic AOC cable runs over long distances with immunity to electromagnetic interference — critical in factory-floor environments. In-sensor binning and ROI modes push effective frame rates into the thousands of fps for partial-scan 3D profiling applications. The all-metal compact body and -20 °C to +65 °C operating range allow direct mounting on inspection gantries and production equipment without additional thermal management.
