Product Specifications
- Manufacturer
- ifm efector
- Product Series
- VS Series
- Product Type
- Industrial Vibration Accelerometer
- Housing Material
- 316 Stainless Steel
- Core Features
- Multiple Measuring/Frequency Ranges, Submersible Option, Wide Operating Temperature Range
- Certification Option
- ATEX Certified
- Application
- Reliable Vibration Detection of Machines & Equipment
- Frequency Range
- 2 Hz to 10 kHz (VSA), 0.5 Hz to 6 kHz (VSM), 0.2 Hz to 5 kHz (VSP)
- Sensitivity
- 100 mV/g (VSA), 500 mV/g (VSM), 1000 mV/g (VSP)
- Output Type
- IEPE (constant current powered)
- IP Rating
- IP67 (VSA), IP68 submersible (VSM)
- Operating Temperature
- -55 to 125°C
- Housing Material
- 316L Stainless Steel
- Documents
- Product Specs (3 Files)
Product Description

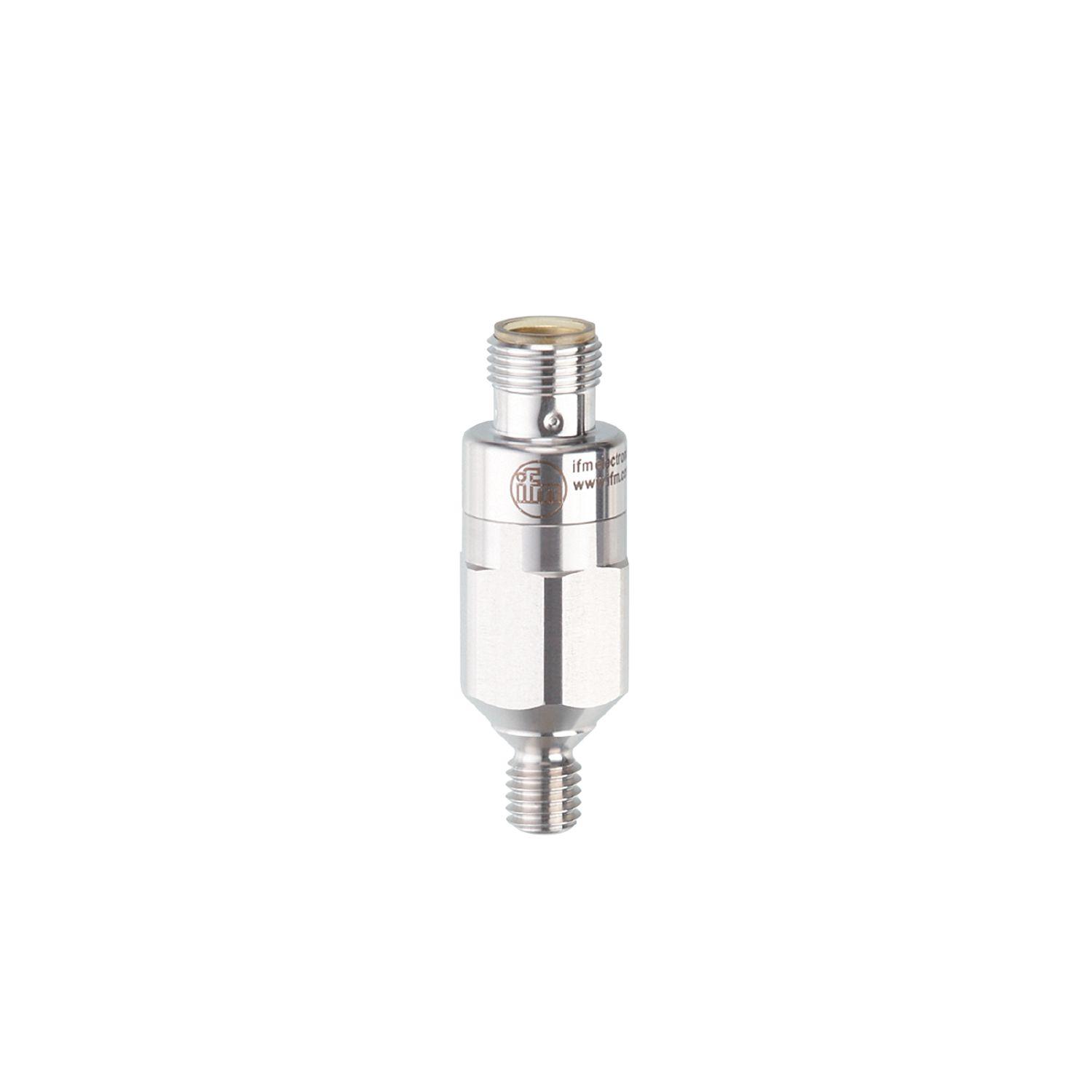

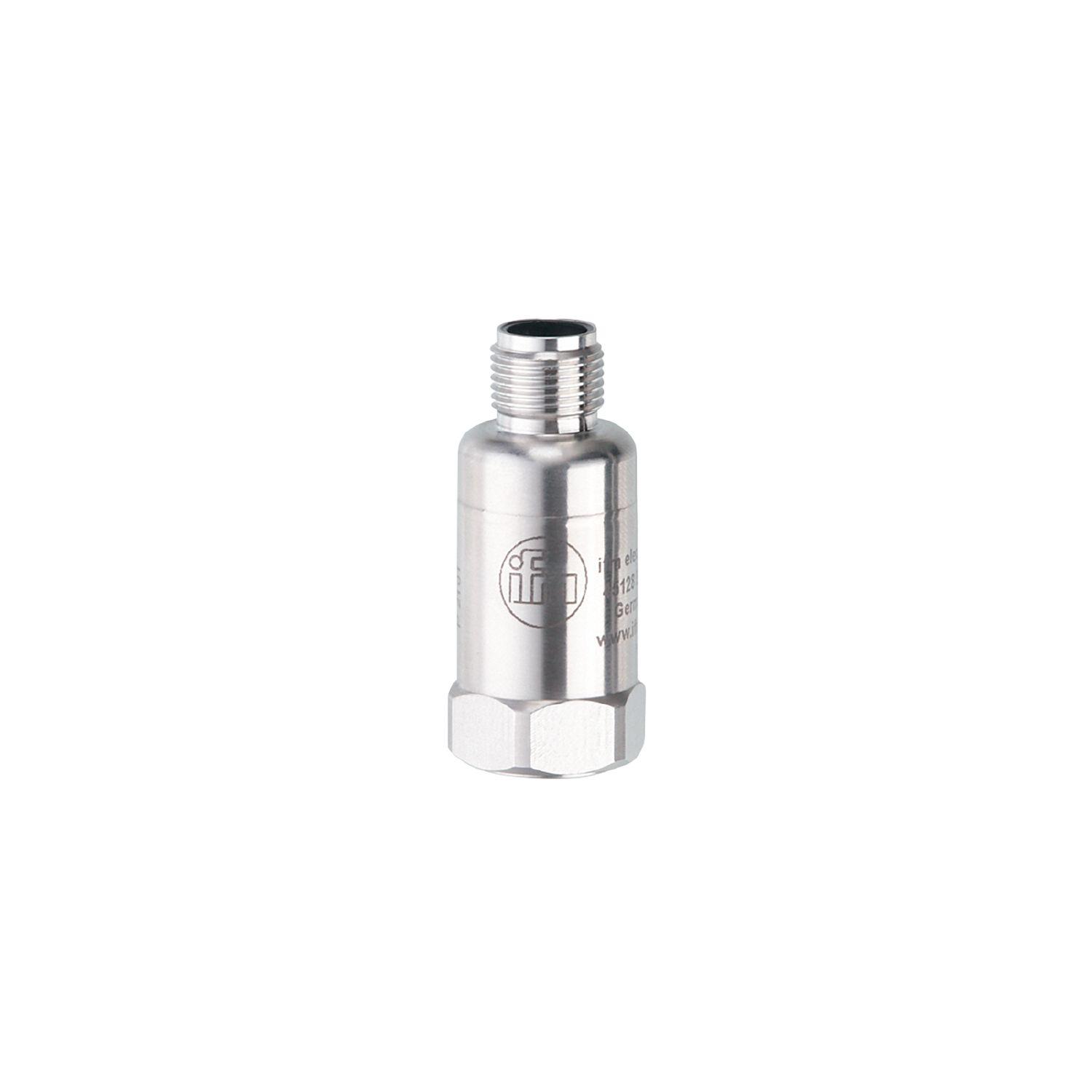

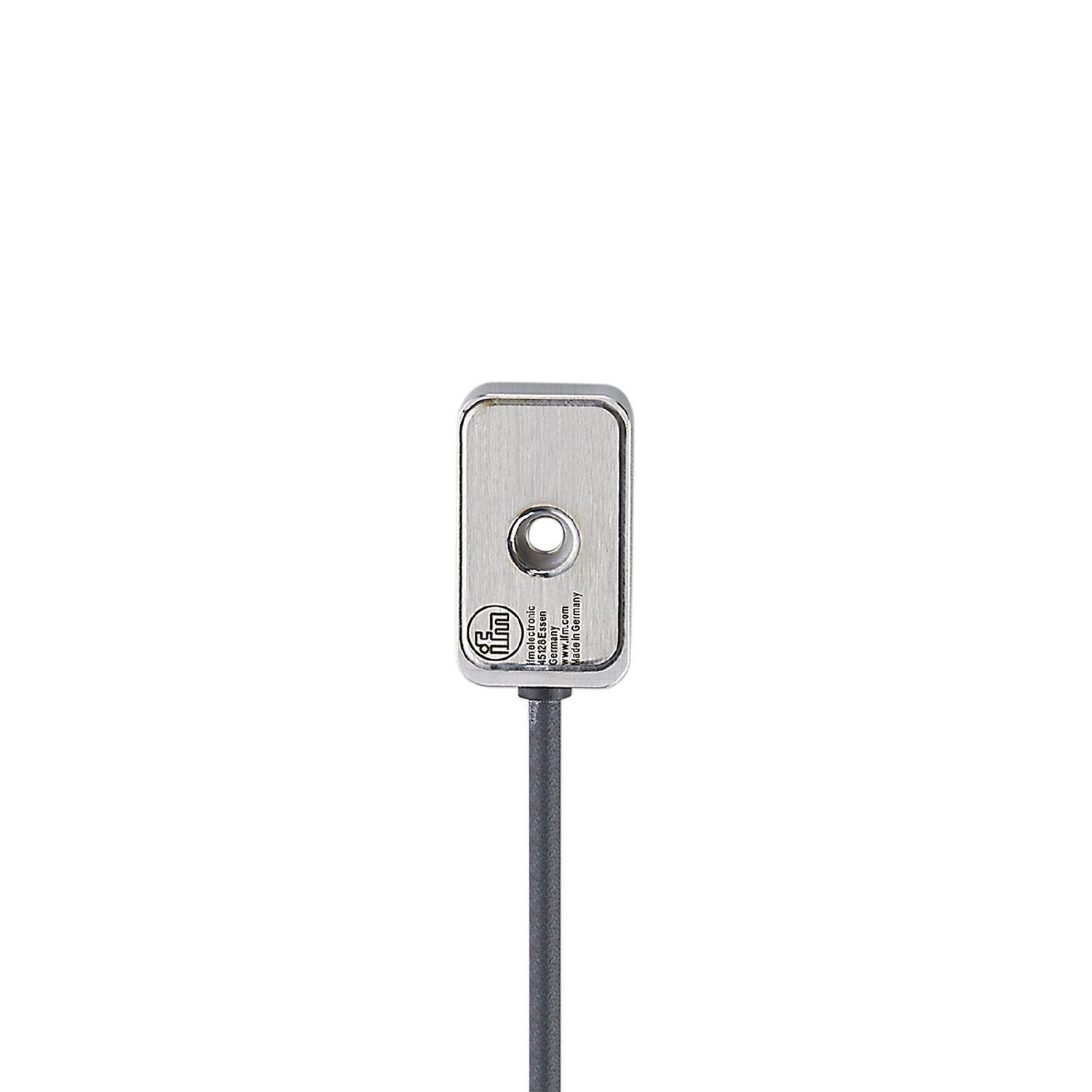

ifm efector VS Series accelerometer enables reliable machine vibration detection, with 316 stainless steel housing, multiple ranges, submersible option, ATEX cert & wide temp range.
The VS Series accelerometers are designed for continuous machine vibration monitoring in industrial environments. Their 316L stainless steel construction provides excellent corrosion resistance, making them suitable for harsh chemical and washdown environments. The submersible option extends usability to underwater or high-humidity applications.
Features
- 316 stainless steel housing
- Various measuring and frequency ranges
- Submersible option
- ATEX certified available
- Large operating temperature range
- High protection rating for the requirements of harsh industrial environments
ifm efector VS Series | Industrial Vibration Accelerometer
Product Specifications
- Manufacturer
- ifm efector
- Product Series
- VS Series
- Product Type
- Industrial Vibration Accelerometer
- Housing Material
- 316 Stainless Steel
- Core Features
- Multiple Measuring/Frequency Ranges, Submersible Option, Wide Operating Temperature Range
- Certification Option
- ATEX Certified
- Application
- Reliable Vibration Detection of Machines & Equipment
- Frequency Range
- 2 Hz to 10 kHz (VSA), 0.5 Hz to 6 kHz (VSM), 0.2 Hz to 5 kHz (VSP)
- Sensitivity
- 100 mV/g (VSA), 500 mV/g (VSM), 1000 mV/g (VSP)
- Output Type
- IEPE (constant current powered)
- IP Rating
- IP67 (VSA), IP68 submersible (VSM)
- Operating Temperature
- -55 to 125°C
- Housing Material
- 316L Stainless Steel
- Documents
- Product Specs (3 Files)
