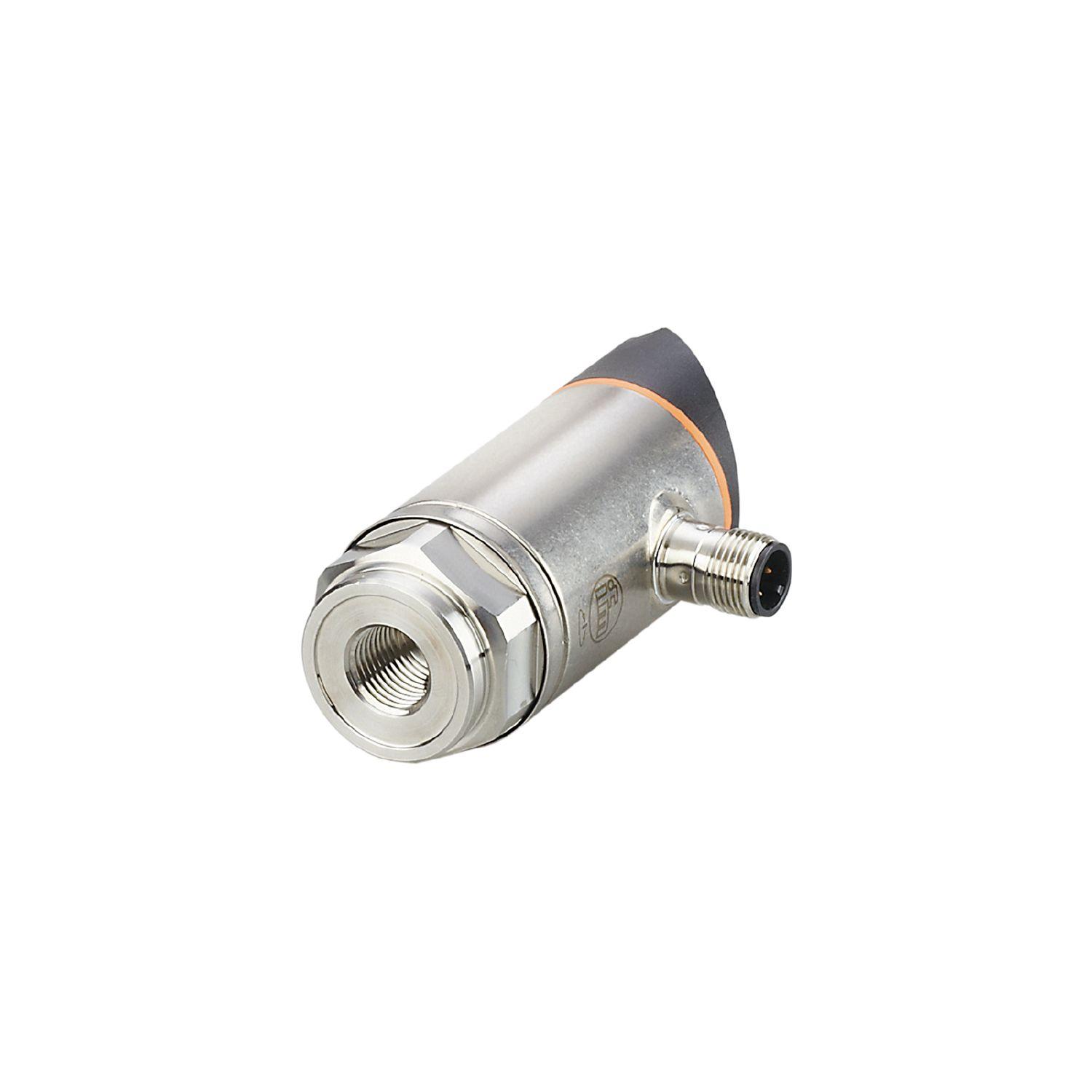

The ifm efector PE Series Pressure Sensor offers a high protection rating and captive laser labelling to ensure reliable operation of the sensors, even in harsh industrial environments. The ceramic-capacitive measuring principle with a special support of the measuring diaphragm makes the sensors immune to overload operation and high pressure peaks, ensuring long-term stability.

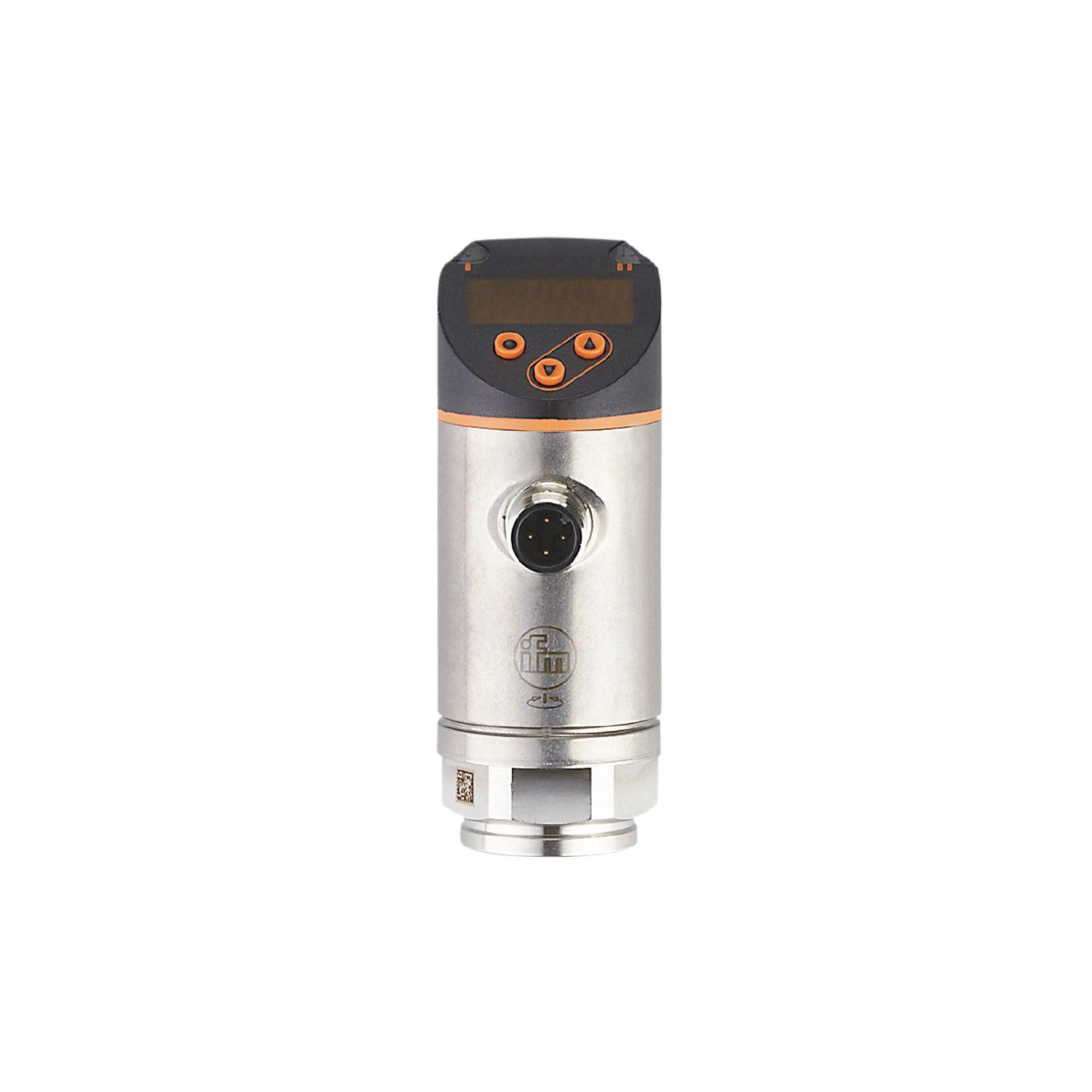

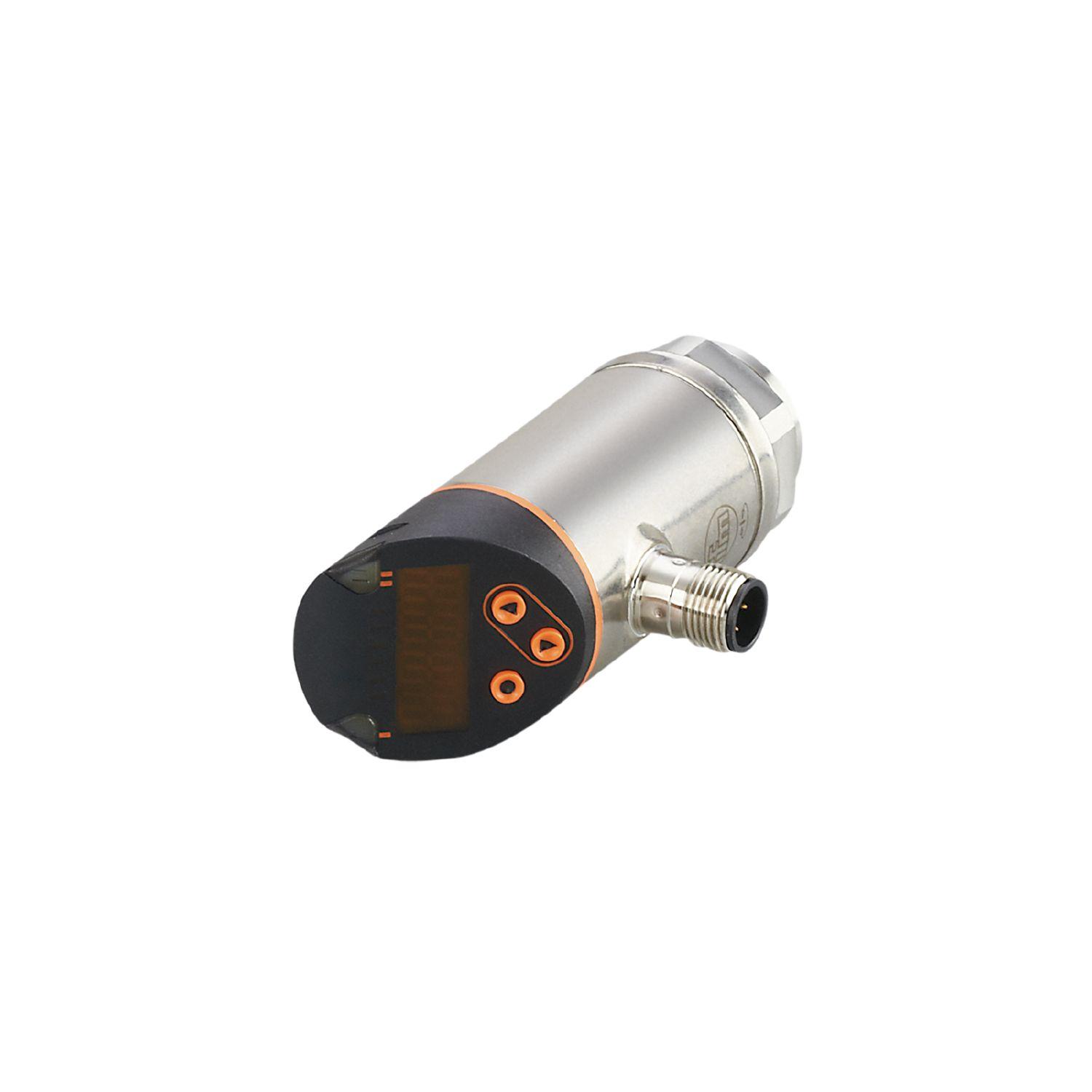

Set-up, maintenance and operation are facilitated by a 4-digit LED display, which is visible from all sides even at greater distances, and two switching status LEDs on the sensor head. The display can be switched from the indication of "red" to an alternating indication of "red - green". Switching states can be highlighted or an independent color window can be created.

The screwed-on sensor can be rotated in any direction. Mounting brackets allow installation in any position.
